ccObject Class Reference

Generic "CloudCompare Object" template. More...

#include <ccObject.h>

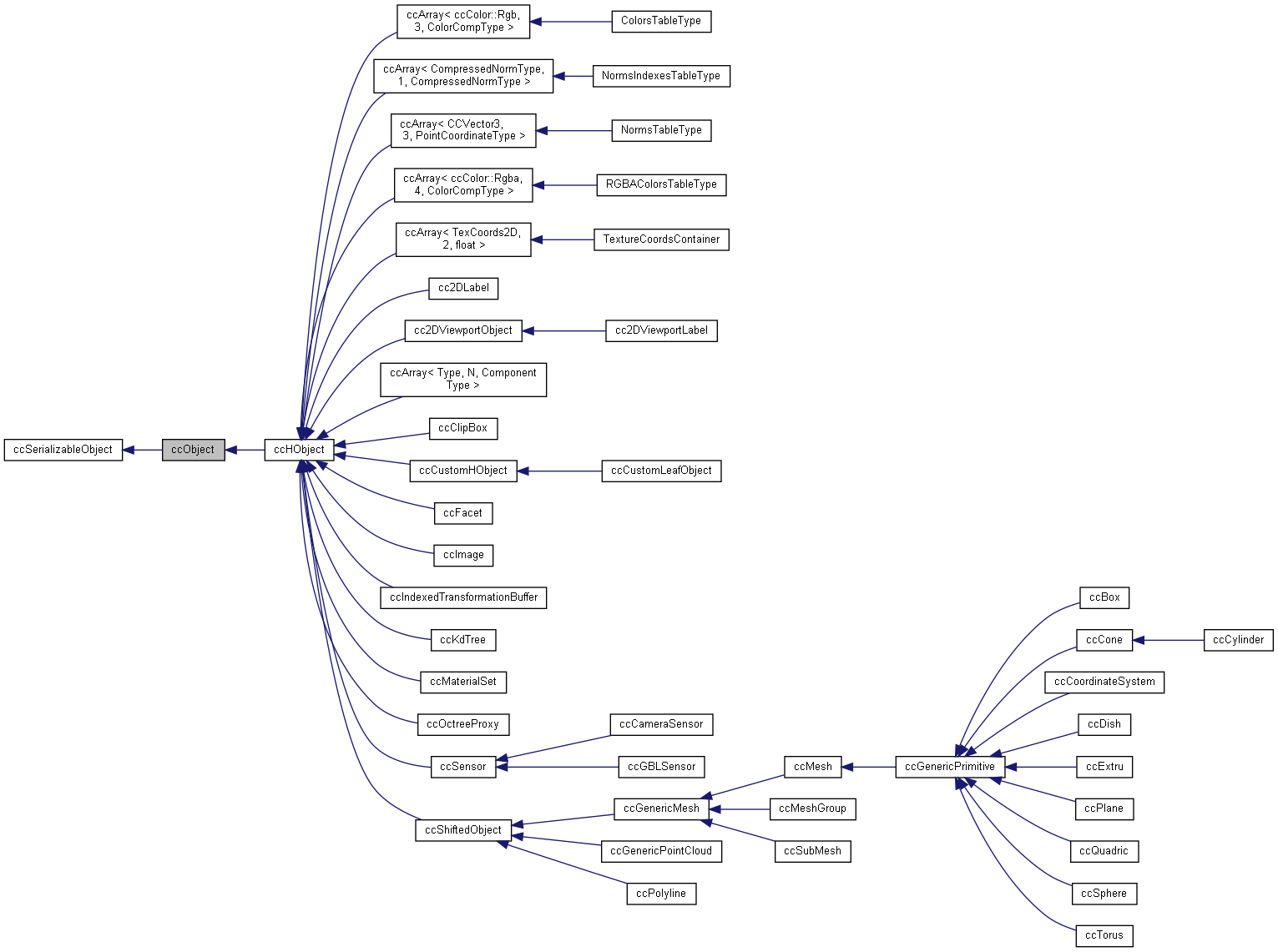

Inheritance diagram for ccObject:

Collaboration diagram for ccObject:

Public Member Functions
	ccObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...
	ccObject (const ccObject &object)
	Copy constructor.
virtual CC_CLASS_ENUM	getClassID () const =0
	Returns class ID. More...
virtual QString	getName () const
	Returns object name. More...
virtual void	setName (const QString &name)
	Sets object name.
virtual unsigned	getUniqueID () const
	Returns object unique ID.
virtual void	setUniqueID (unsigned ID)
	Changes unique ID. More...
virtual bool	isEnabled () const
	Returns whether the object is enabled or not. More...
virtual void	setEnabled (bool state)
	Sets the "enabled" property. More...
virtual void	toggleActivation ()
	Toggles the "enabled" property.
virtual bool	isLocked () const
	Returns whether the object is locked or not. More...
virtual void	setLocked (bool state)
	Sets the "enabled" property. More...
bool	isLeaf () const
bool	isCustom () const
bool	isHierarchy () const
bool	isKindOf (CC_CLASS_ENUM type) const
bool	isA (CC_CLASS_ENUM type) const
QVariant	getMetaData (const QString &key) const
	Returns a given associated meta data. More...
bool	removeMetaData (const QString &key)
	Removes a given associated meta-data. More...
void	setMetaData (const QString &key, const QVariant &data)
	Sets a meta-data element. More...
void	setMetaData (const QVariantMap &dataset, bool overwrite=false)
	Sets several meta-data elements at a time. More...
bool	hasMetaData (const QString &key) const
	Returns whether a meta-data element with the given key exists or not. More...
const QVariantMap &	metaData () const
	Returns meta-data map (const only)
Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor.
virtual bool	isSerializable () const
	Returns whether object is serializable of not. More...
virtual bool	toFile (QFile &out) const
	Saves data to binary stream. More...
virtual bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads data from binary stream. More...

Static Public Member Functions
static unsigned	GetCurrentDBVersion ()
	Returns current database version.
static void	SetUniqueIDGenerator (ccUniqueIDGenerator::Shared generator)
	Sets the unique ID generator.
static ccUniqueIDGenerator::Shared	GetUniqueIDGenerator ()
	Returns the unique ID generator.
static unsigned	GetNextUniqueID ()
	Returns a new unassigned unique ID. More...
static unsigned	GetLastUniqueID ()
	Returns last assigned unique ID. More...
static CC_CLASS_ENUM	ReadClassIDFromFile (QFile &in, short dataVersion)
	Helper: reads out class ID from a binary stream. More...
Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...
static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...
static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...
static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Protected Member Functions
virtual bool	getFlagState (CC_OBJECT_FLAG flag) const
	Returns flag state.
virtual void	setFlagState (CC_OBJECT_FLAG flag, bool state)
	Sets flag state. More...
bool	toFile (QFile &out) const override
	Saves data to binary stream. More...
bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Reimplemented from ccSerializableObject::fromFile. More...

Protected Attributes
QString	m_name
	Object name.
unsigned	m_flags
	Object flags.
QVariantMap	m_metaData
	Associated meta-data.

Additional Inherited Members
Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS = 1 , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...
typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID)

Detailed Description

Generic "CloudCompare Object" template.

Constructor & Destructor Documentation

ccObject()

ccObject::ccObject	(	const QString &	name = QString(),
		unsigned	uniqueID = ccUniqueIDGenerator::InvalidUniqueID
	)

Default constructor.

Parameters

name	object name (optional)
uniqueID	unique ID (handle with care! Will be auto generated if equal to ccUniqueIDGenerator::InvalidUniqueID)

Member Function Documentation

fromFile()

bool ccObject::fromFile ( QFile &  in, short  dataVersion, int  flags, LoadedIDMap &  oldToNewIDMap  )

overrideprotectedvirtual

Reimplemented from ccSerializableObject::fromFile.

Be sure to call ccObject::ReadClassIDFromFile (once) before calling this method, as the classID is voluntarily skipped (in order to let the user instantiate the object first)

Reimplemented from ccSerializableObject.

getClassID()

virtual CC_CLASS_ENUM ccObject::getClassID ( ) const

pure virtual

Returns class ID.

Implemented in cc2DLabel, cc2DViewportLabel, cc2DViewportObject, NormsIndexesTableType, NormsTableType, ColorsTableType, RGBAColorsTableType, TextureCoordsContainer, ccArray< Type, N, ComponentType >, ccArray< ccColor::Rgb, 3, ColorCompType >, ccArray< CompressedNormType, 1, CompressedNormType >, ccArray< CCVector3, 3, PointCoordinateType >, ccArray< ccColor::Rgba, 4, ColorCompType >, ccArray< TexCoords2D, 2, float >, ccBox, ccCameraSensor, ccClipBox, ccCone, ccCoordinateSystem, ccCustomHObject, ccCustomLeafObject, ccCylinder, ccDish, ccExtru, ccFacet, ccGBLSensor, ccGenericPrimitive, ccHObject, ccImage, ccIndexedTransformationBuffer, ccKdTree, ccMaterialSet, ccMesh, ccMeshGroup, ccOctreeProxy, ccPlane, ccPolyline, ccQuadric, ccSensor, ccSphere, ccSubMesh, and ccTorus.

GetLastUniqueID()

unsigned ccObject::GetLastUniqueID ( )

static

Returns last assigned unique ID.

Unique IDs are handled with persistent settings in order to assure consistency between main app and plugins!

getMetaData()

QVariant ccObject::getMetaData

(

const QString &

key

)

const

Returns a given associated meta data.

Parameters

key	meta data unique identifier (case sensitive)

Returns

meta data (if any) or an invalid QVariant

getName()

virtual QString ccObject::getName ( ) const

inlinevirtual

Returns object name.

Reimplemented in cc2DLabel.

GetNextUniqueID()

unsigned ccObject::GetNextUniqueID ( )

static

Returns a new unassigned unique ID.

Unique IDs are handled with persistent settings in order to assure consistency between main app and plugins!

hasMetaData()

bool ccObject::hasMetaData

(

const QString &

key

)

const

Returns whether a meta-data element with the given key exists or not.

Parameters

key	meta-data unique identifier (case sensitive)

Returns

whether the element exists or not

isEnabled()

virtual bool ccObject::isEnabled ( ) const

inlinevirtual

Returns whether the object is enabled or not.

Shortcut to access flag CC_ENABLED

isLocked()

virtual bool ccObject::isLocked ( ) const

inlinevirtual

Returns whether the object is locked or not.

Shortcut to access flag CC_LOCKED

ReadClassIDFromFile()

CC_CLASS_ENUM ccObject::ReadClassIDFromFile ( QFile &  in, short  dataVersion  )

static

Helper: reads out class ID from a binary stream.

Must be called before 'fromFile'!

removeMetaData()

bool ccObject::removeMetaData

(

const QString &

key

)

Removes a given associated meta-data.

Parameters

key	meta-data unique identifier (case sensitive)

Returns

success

setEnabled()

virtual void ccObject::setEnabled ( bool  state )

inlinevirtual

Sets the "enabled" property.

Shortcut to modify flag CC_ENABLED

setFlagState()

void ccObject::setFlagState ( CC_OBJECT_FLAG  flag, bool  state  )

protectedvirtual

Sets flag state.

Parameters

flag	object flag to set
state	flag state

setLocked()

virtual void ccObject::setLocked ( bool  state )

inlinevirtual

Sets the "enabled" property.

Shortcut to modify flag CC_LOCKED

setMetaData() [1/2]

void ccObject::setMetaData	(	const QString &	key,
		const QVariant &	data
	)

Sets a meta-data element.

Parameters

key	meta-data unique identifier (case sensitive)
data	data

setMetaData() [2/2]

void ccObject::setMetaData	(	const QVariantMap &	dataset,
		bool	overwrite = false
	)

Sets several meta-data elements at a time.

Parameters

dataset	meta-data set
overwrite	whether existing meta-data elements should be replaced by the input ones (with the same key) or not

setUniqueID()

void ccObject::setUniqueID ( unsigned  ID )

virtual

Changes unique ID.

Warning

HANDLE WITH CARE! Updates persistent settings (last unique ID) if necessary.

toFile()

bool ccObject::toFile ( QFile &  out ) const

overrideprotectedvirtual

Saves data to binary stream.

Parameters

out	output file (already opened)

Returns

success

Reimplemented from ccSerializableObject.

---

The documentation for this class was generated from the following files:

• ccObject.h
• ccObject.cpp
