Colored polyline. More...

#include <ccPolyline.h>

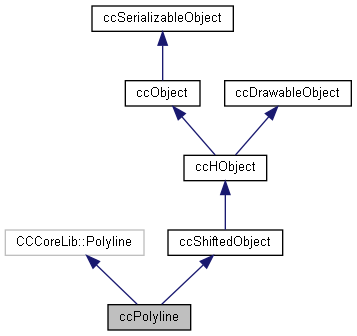

Inheritance diagram for ccPolyline:

[legend]

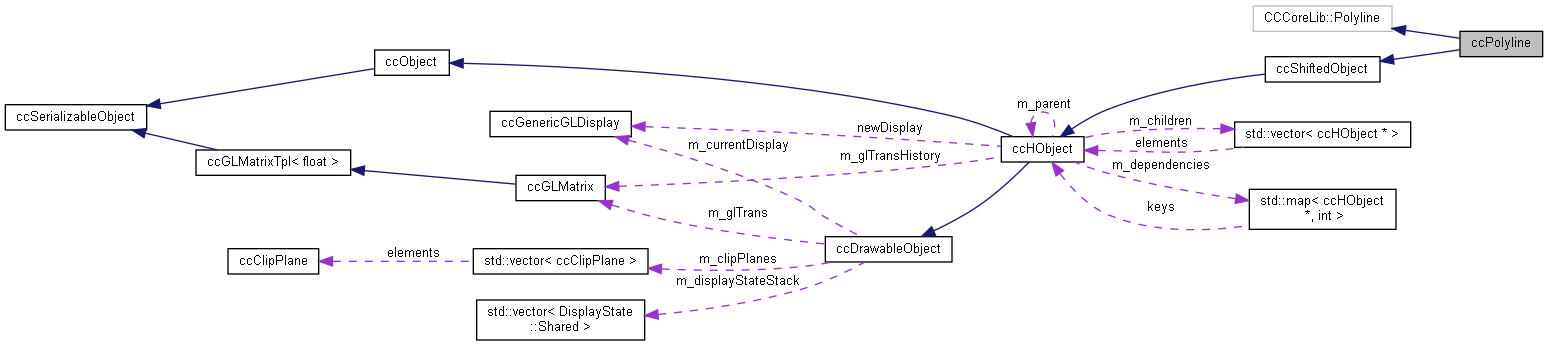

Collaboration diagram for ccPolyline:

[legend]

Public Member Functions
	ccPolyline (GenericIndexedCloudPersist *associatedCloud, unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccPolyline (const ccPolyline &poly)
	Copy constructor. More...

virtual	~ccPolyline () override=default
	Destructor.

CC_CLASS_ENUM	getClassID () const override
	Returns class ID. More...

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	hasColors () const override
	Returns whether colors are enabled or not. More...

void	applyGLTransformation (const ccGLMatrix &trans) override
	Applies a GL transformation to the entity. More...

unsigned	getUniqueIDForDisplay () const override
	Returns object unique ID used for display. More...

void	setGlobalShift (const CCVector3d &shift) override
	Sets shift applied to original coordinates (information storage only) More...

void	setGlobalScale (double scale) override
	Sets the scale applied to original coordinates (information storage only) More...

const CCVector3d &	getGlobalShift () const override
	Returns the shift applied to original coordinates. More...

double	getGlobalScale () const override
	Returns the scale applied to original coordinates. More...

ccPolyline *	clone () const
	Clones this polyline.

void	set2DMode (bool state)
	Defines if the polyline is considered as 2D or 3D. More...

bool	is2DMode () const
	Returns whether the polyline is considered as 2D or 3D.

void	setForeground (bool state)
	Defines if the polyline is drawn in background or foreground. More...

void	setColor (const ccColor::Rgb &col)
	Sets the polyline color. More...

void	setWidth (PointCoordinateType width)
	Sets the width of the line. More...

PointCoordinateType	getWidth () const
	Returns the width of the line. More...

const ccColor::Rgb &	getColor () const
	Returns the polyline color. More...

virtual ccBBox	getOwnBB (bool withGLFeatures=false) override
	Returns the entity's own bounding-box (with local/shifted coordinates) More...

virtual void	drawBB (CC_DRAW_CONTEXT &context, const ccColor::Rgb &col) override
	Draws the entity (and its children) bounding-box. More...

bool	split (PointCoordinateType maxEdgeLength, std::vector< ccPolyline * > &parts)
	Splits the polyline into several parts based on a maximum edge length. More...

PointCoordinateType	computeLength () const
	Computes the polyline length.

void	showVertices (bool state)
	Sets whether to display or hide the polyline vertices.

bool	verticesShown () const
	Whether the polyline vertices should be displayed or not.

void	setVertexMarkerWidth (int width)
	Sets the width of vertex markers.

int	getVertexMarkerWidth () const
	Returns the width of vertex markers.

bool	initWith (ccPointCloud *&vertices, const ccPolyline &poly)
	Initializes the polyline with a given set of vertices and the parameters of another polyline. More...

void	importParametersFrom (const ccPolyline &poly)
	Copy the parameters from another polyline.

void	showArrow (bool state, unsigned vertIndex, PointCoordinateType length)
	Shows an arrow in place of a given vertex.

unsigned	segmentCount () const
	Returns the number of segments.

ccPointCloud *	samplePoints (bool densityBased, double samplingParameter, bool withRGB)
	Samples points on the polyline.

ccPolyline *	smoothChaikin (PointCoordinateType ratio, unsigned iterationCount) const
	Smoothes the polyline (Chaikin algorithm) More...

bool	createNewPolylinesFromSelection (std::vector< ccPolyline * > &output)
	Creates a polyline mesh with the selected vertices only. More...

Public Member Functions inherited from ccShiftedObject
	ccShiftedObject (QString name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccShiftedObject (const ccShiftedObject &s)=default
	Copy constructor. More...

void	copyGlobalShiftAndScale (const ccShiftedObject &s)
	Copies the Global Shift and Scale from another entity. More...

virtual void	setGlobalShift (double x, double y, double z)
	Sets shift applied to original coordinates (information storage only) More...

virtual void	setGlobalShift (const CCVector3d &shift)
	Sets shift applied to original coordinates (information storage only) More...

virtual const CCVector3d &	getGlobalShift () const
	Returns the shift applied to original coordinates. More...

virtual void	setGlobalScale (double scale)
	Sets the scale applied to original coordinates (information storage only) More...

virtual double	getGlobalScale () const
	Returns the scale applied to original coordinates. More...

bool	isShifted () const
	Returns whether the cloud is shifted or not.

template<typename T >
CCVector3d	toGlobal3d (const Vector3Tpl< T > &Plocal) const
	Returns the point back-projected into the original coordinates system.

template<typename T >
CCVector3d	toLocal3d (const Vector3Tpl< T > &Pglobal) const
	Returns the point projected into the local (shifted) coordinates system.

template<typename T >
CCVector3	toLocal3pc (const Vector3Tpl< T > &Pglobal) const
	Returns the point projected into the local (shifted) coordinates system.

bool	getOwnGlobalBB (CCVector3d &minCorner, CCVector3d &maxCorner) override
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

GlobalBoundingBox	getOwnGlobalBB (bool withGLFeatures=false) override
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

Public Member Functions inherited from ccHObject
	ccHObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccHObject (const ccHObject &object)
	Copy constructor.

	~ccHObject () override
	Default destructor.

CC_CLASS_ENUM	getClassID () const override
	Returns class ID. More...

bool	isGroup () const
	Returns whether the instance is a group.

ccHObject *	getParent () const
	Returns parent object. More...

virtual QIcon	getIcon () const
	Returns the icon associated to this entity. More...

void	addDependency (ccHObject *otherObject, int flags, bool additive=true)
	Adds a new dependence (additive or not) More...

int	getDependencyFlagsWith (const ccHObject *otherObject) const
	Returns the dependency flags with a given object. More...

void	removeDependencyWith (ccHObject *otherObject)
	Removes any dependency flags with a given object. More...

void	removeDependencyFlag (ccHObject *otherObject, DEPENDENCY_FLAGS flag)
	Removes a given dependency flag. More...

virtual bool	addChild (ccHObject *child, int dependencyFlags=DP_PARENT_OF_OTHER, int insertIndex=-1)
	Adds a child. More...

unsigned	getChildrenNumber () const
	Returns the number of children. More...

unsigned int	getChildCountRecursive () const
	Returns the total number of children under this object recursively. More...

ccHObject *	getChild (unsigned childPos) const
	Returns the ith child. More...

ccHObject *	find (unsigned uniqueID) const
	Finds an entity in this object hierarchy. More...

unsigned	filterChildren (Container &filteredChildren, bool recursive=false, CC_CLASS_ENUM filter=CC_TYPES::OBJECT, bool strict=false, ccGenericGLDisplay *inDisplay=nullptr) const
	Collects the children corresponding to a certain pattern. More...

void	detachChild (ccHObject *child)
	Detaches a specific child. More...

void	detachAllChildren ()
	Removes a specific child. More...

void	removeChild (ccHObject *child)

void	removeChild (int pos)
	Removes a specific child given its index. More...

void	removeAllChildren ()
	Removes all children.

int	getChildIndex (const ccHObject *aChild) const
	Returns child index.

void	swapChildren (unsigned firstChildIndex, unsigned secondChildIndex)
	Swaps two children.

int	getIndex () const
	Returns index relatively to its parent or -1 if no parent.

void	transferChild (ccHObject *child, ccHObject &newParent)
	Transfer a given child to another parent.

void	transferChildren (ccHObject &newParent, bool forceFatherDependent=false)
	Transfer all children to another parent.

ccHObject *	getFirstChild () const
	Shortcut: returns first child.

ccHObject *	getLastChild () const
	Shortcut: returns last child.

bool	isAncestorOf (const ccHObject *anObject) const
	Returns true if the current object is an ancestor of the specified one.

virtual ccBBox	getOwnBB (bool withGLFeatures=false)
	Returns the entity's own bounding-box (with local/shifted coordinates) More...

virtual ccBBox	getBB_recursive (bool withGLFeatures=false, bool onlyEnabledChildren=true)
	Returns the local bounding-box of this entity and it's children. More...

virtual GlobalBoundingBox	getOwnGlobalBB (bool withGLFeatures=false)
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

virtual bool	getOwnGlobalBB (CCVector3d &minCorner, CCVector3d &maxCorner)
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

virtual GlobalBoundingBox	getGlobalBB_recursive (bool withGLFeatures=false, bool onlyEnabledChildren=true)
	Returns the global bounding-box of this entity and it's children. More...

virtual ccBBox	getDisplayBB_recursive (bool relative, const ccGenericGLDisplay *display=nullptr)
	Returns the bounding-box of this entity and it's children WHEN DISPLAYED. More...

virtual ccBBox	getOwnFitBB (ccGLMatrix &trans)
	Returns best-fit bounding-box (if available) More...

virtual void	drawBB (CC_DRAW_CONTEXT &context, const ccColor::Rgb &col)
	Draws the entity (and its children) bounding-box. More...

void	draw (CC_DRAW_CONTEXT &context) override
	Draws entity and its children. More...

bool	getAbsoluteGLTransformation (ccGLMatrix &trans) const
	Returns the absolute transformation (i.e. the actual displayed GL transformation) of an entity. More...

virtual bool	isDisplayed () const
	Returns whether the object is actually displayed (visible) or not.

virtual bool	isDisplayedIn (const ccGenericGLDisplay *display) const
	Returns whether the object is actually displayed (visible) in a given display or not.

virtual bool	isBranchEnabled () const
	Returns whether the object and all its ancestors are enabled.

	ccHObject_recursive_call1 (setSelected, bool, setSelected_recursive) ccHObject_recursive_call1(setDisplay

ccGenericGLDisplay setDisplay_recursive	ccHObject_recursive_call1 (removeFromDisplay, ccGenericGLDisplay *, removeFromDisplay_recursive) ccHObject_recursive_call0(prepareDisplayForRefresh

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive	ccHObject_recursive_call1 (refreshDisplay, bool, refreshDisplay_recursive) ccHObject_recursive_call0(resetGLTransformationHistory

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive	ccHObject_recursive_call0 (toggleActivation, toggleActivation_recursive) ccHObject_recursive_call0(toggleVisibility

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive	ccHObject_recursive_call0 (toggleColors, toggleColors_recursive) ccHObject_recursive_call0(toggleNormals

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive	ccHObject_recursive_call0 (toggleSF, toggleSF_recursive) ccHObject_recursive_call0(toggleShowName

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive	ccHObject_recursive_call0 (toggleMaterials, toggleMaterials_recursive) inline virtual void transferDisplay(ccGenericGLDisplay *oldDisplay
	Transfers the entity from one display to the other.

void	applyGLTransformation_recursive (const ccGLMatrix *trans=nullptr)
	Applies the active OpenGL transformation to the entity (recursive) More...

virtual void	notifyGeometryUpdate ()
	Notifies all dependent entities that the geometry of this entity has changed.

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	toFile (QFile &out) const override
	Saves data to binary stream. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...

bool	fromFileNoChildren (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Custom version of ccSerializableObject::fromFile. More...

virtual bool	isShareable () const
	Returns whether object is shareable or not. More...

virtual void	setSelectionBehavior (SelectionBehavior mode)
	Sets selection behavior (when displayed) More...

virtual SelectionBehavior	getSelectionBehavior () const
	Returns selection behavior.

virtual unsigned	getUniqueIDForDisplay () const
	Returns object unique ID used for display. More...

virtual const ccGLMatrix &	getGLTransformationHistory () const
	Returns the transformation 'history' matrix. More...

virtual void	setGLTransformationHistory (const ccGLMatrix &mat)
	Sets the transformation 'history' matrix (handle with care!)

virtual void	resetGLTransformationHistory ()
	Resets the transformation 'history' matrix.

bool	pushDisplayState () override
	Pushes the current display state (overridden) More...

void	popDisplayState (bool apply=true) override
	Pops the last pushed display state (overridden) More...

Public Member Functions inherited from ccObject
	ccObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccObject (const ccObject &object)
	Copy constructor.

virtual CC_CLASS_ENUM	getClassID () const =0
	Returns class ID. More...

virtual QString	getName () const
	Returns object name. More...

virtual void	setName (const QString &name)
	Sets object name.

virtual unsigned	getUniqueID () const
	Returns object unique ID.

virtual void	setUniqueID (unsigned ID)
	Changes unique ID. More...

virtual bool	isEnabled () const
	Returns whether the object is enabled or not. More...

virtual void	setEnabled (bool state)
	Sets the "enabled" property. More...

virtual void	toggleActivation ()
	Toggles the "enabled" property.

virtual bool	isLocked () const
	Returns whether the object is locked or not. More...

virtual void	setLocked (bool state)
	Sets the "enabled" property. More...

bool	isLeaf () const

bool	isCustom () const

bool	isHierarchy () const

bool	isKindOf (CC_CLASS_ENUM type) const

bool	isA (CC_CLASS_ENUM type) const

QVariant	getMetaData (const QString &key) const
	Returns a given associated meta data. More...

bool	removeMetaData (const QString &key)
	Removes a given associated meta-data. More...

void	setMetaData (const QString &key, const QVariant &data)
	Sets a meta-data element. More...

void	setMetaData (const QVariantMap &dataset, bool overwrite=false)
	Sets several meta-data elements at a time. More...

bool	hasMetaData (const QString &key) const
	Returns whether a meta-data element with the given key exists or not. More...

const QVariantMap &	metaData () const
	Returns meta-data map (const only)

Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor.

virtual bool	isSerializable () const
	Returns whether object is serializable of not. More...

virtual bool	toFile (QFile &out) const
	Saves data to binary stream. More...

virtual bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads data from binary stream. More...

Public Member Functions inherited from ccDrawableObject
	ccDrawableObject ()
	Default constructor.

	ccDrawableObject (const ccDrawableObject &object)
	Copy constructor.

virtual void	draw (CC_DRAW_CONTEXT &context)=0
	Draws entity and its children. More...

virtual bool	isVisible () const
	Returns whether entity is visible or not.

virtual void	setVisible (bool state)
	Sets entity visibility.

virtual void	toggleVisibility ()
	Toggles visibility.

virtual bool	isVisibilityLocked () const
	Returns whether visibility is locked or not.

virtual void	lockVisibility (bool state)
	Locks/unlocks visibility. More...

virtual bool	isSelected () const
	Returns whether entity is selected or not.

virtual void	setSelected (bool state)
	Selects/unselects entity.

virtual void	getDrawingParameters (glDrawParams &params) const
	Returns main OpenGL parameters for this entity. More...

virtual bool	hasColors () const
	Returns whether colors are enabled or not. More...

virtual bool	colorsShown () const
	Returns whether colors are shown or not.

virtual void	showColors (bool state)
	Sets colors visibility.

virtual void	toggleColors ()
	Toggles colors display state.

virtual bool	hasNormals () const
	Returns whether normals are enabled or not. More...

virtual bool	normalsShown () const
	Returns whether normals are shown or not. More...

virtual void	showNormals (bool state)
	Sets normals visibility. More...

virtual void	toggleNormals ()
	Toggles normals display state.

virtual bool	hasDisplayedScalarField () const
	Returns whether an active scalar field is available or not. More...

virtual bool	hasScalarFields () const
	Returns whether one or more scalar fields are instantiated. More...

virtual void	showSF (bool state)
	Sets active scalarfield visibility.

virtual void	toggleSF ()
	Toggles SF display state.

virtual bool	sfShown () const
	Returns whether active scalar field is visible.

virtual void	toggleMaterials ()
	Toggles material display state. More...

virtual void	showNameIn3D (bool state)
	Sets whether name should be displayed in 3D or not.

virtual bool	nameShownIn3D () const
	Returns whether name is displayed in 3D or not.

virtual void	toggleShowName ()
	Toggles name in 3D display state.

virtual bool	isColorOverridden () const
	Returns whether colors are currently overridden by a temporary (unique) color. More...

virtual const ccColor::Rgba &	getTempColor () const
	Returns current temporary (unique) color.

virtual void	setTempColor (const ccColor::Rgba &col, bool autoActivate=true)
	Sets current temporary (unique) More...

virtual void	setTempColor (const ccColor::Rgb &col, bool autoActivate=true)
	Sets current temporary (unique) More...

virtual void	enableTempColor (bool state)
	Set temporary color activation state.

virtual void	removeFromDisplay (const ccGenericGLDisplay *win)
	Unlinks entity from a GL display (only if it belongs to it of course)

virtual void	setDisplay (ccGenericGLDisplay *win)
	Sets associated GL display.

virtual ccGenericGLDisplay *	getDisplay () const
	Returns associated GL display.

virtual void	redrawDisplay ()
	Redraws associated GL display.

virtual void	prepareDisplayForRefresh ()
	Sets associated GL display 'refreshable' before global refresh. More...

virtual void	refreshDisplay (bool only2D=false)
	Refreshes associated GL display. More...

virtual void	setGLTransformation (const ccGLMatrix &trans)
	Associates entity with a GL transformation (rotation + translation) More...

virtual void	enableGLTransformation (bool state)
	Enables/disables associated GL transformation. More...

virtual bool	isGLTransEnabled () const
	Returns whether a GL transformation is enabled or not.

virtual const ccGLMatrix &	getGLTransformation () const
	Returns associated GL transformation. More...

virtual void	resetGLTransformation ()
	Resets associated GL transformation. More...

virtual void	rotateGL (const ccGLMatrix &rotMat)
	Multiplies (left) current GL transformation by a rotation matrix. More...

virtual void	translateGL (const CCVector3 &trans)
	Translates current GL transformation by a rotation matrix. More...

virtual void	removeAllClipPlanes ()
	Removes all clipping planes (if any)

virtual bool	addClipPlanes (const ccClipPlane &plane)
	Registers a new clipping plane. More...

virtual void	toggleClipPlanes (CC_DRAW_CONTEXT &context, bool enable)
	Enables or disables clipping planes (OpenGL) More...

virtual bool	pushDisplayState ()
	Pushes the current display state. More...

virtual void	popDisplayState (bool apply=true)
	Pops the last pushed display state. More...

virtual void	applyDisplayState (const DisplayState &state)
	Applies a display state.

Static Public Member Functions
static bool	IsCloudVerticesOfPolyline (ccGenericPointCloud cloud, ccPolyline *polyline=nullptr)
	Helper to determine if the input cloud acts as vertices of a polyline.

static QString	MetaKeyUpDir ()
	Meta data key: vertical direction (for 2D polylines, contour plots, etc.) More...

static QString	MetaKeyConstAltitude ()
	Meta data key: contour plot constant altitude (for contour plots, etc.) More...

static QString	MetaKeyAbscissa ()
	Meta data key: profile abscissa along generatrix.

static QString	MetaKeyPrefixCenter ()
	Meta data key (prefix): intersection point between profile and its generatrix. More...

static QString	MetaKeyPrefixDirection ()
	Meta data key (prefix): generatrix orientation at the point of intersection with the profile. More...

Static Public Member Functions inherited from ccHObject
static ccHObject *	New (CC_CLASS_ENUM objectType, const char *name=nullptr)
	Static factory. More...

static ccHObject *	New (const QString &pluginId, const QString &classId, const char *name=nullptr)
	Static factory (version to be used by external plugin factories) More...

Static Public Member Functions inherited from ccObject
static unsigned	GetCurrentDBVersion ()
	Returns current database version.

static void	SetUniqueIDGenerator (ccUniqueIDGenerator::Shared generator)
	Sets the unique ID generator.

static ccUniqueIDGenerator::Shared	GetUniqueIDGenerator ()
	Returns the unique ID generator.

static unsigned	GetNextUniqueID ()
	Returns a new unassigned unique ID. More...

static unsigned	GetLastUniqueID ()
	Returns last assigned unique ID. More...

static CC_CLASS_ENUM	ReadClassIDFromFile (QFile &in, short dataVersion)
	Helper: reads out class ID from a binary stream. More...

Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...

static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...

static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...

static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Protected Member Functions
bool	toFile_MeOnly (QFile &out) const override
	Save own object data. More...

bool	fromFile_MeOnly (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads own object data. More...

void	drawMeOnly (CC_DRAW_CONTEXT &context) override
	Draws the entity only (not its children) More...

Protected Member Functions inherited from ccShiftedObject
bool	saveShiftInfoToFile (QFile &out) const
	Serialization helper (output)

bool	loadShiftInfoFromFile (QFile &in)
	Serialization helper (input)

Protected Member Functions inherited from ccHObject
virtual void	setParent (ccHObject *anObject)
	Sets parent object.

virtual void	drawMeOnly (CC_DRAW_CONTEXT &context)
	Draws the entity only (not its children) More...

virtual void	applyGLTransformation (const ccGLMatrix &trans)
	Applies a GL transformation to the entity. More...

virtual bool	toFile_MeOnly (QFile &out) const
	Save own object data. More...

virtual bool	fromFile_MeOnly (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads own object data. More...

virtual void	drawNameIn3D (CC_DRAW_CONTEXT &context)
	Draws the entity name in 3D. More...

virtual void	onDeletionOf (const ccHObject *obj)
	This method is called when another object is deleted. More...

virtual void	onUpdateOf (ccHObject *obj)
	This method is called when another object (geometry) is updated. More...

Protected Member Functions inherited from ccObject
virtual bool	getFlagState (CC_OBJECT_FLAG flag) const
	Returns flag state.

virtual void	setFlagState (CC_OBJECT_FLAG flag, bool state)
	Sets flag state. More...

bool	toFile (QFile &out) const override
	Saves data to binary stream. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Reimplemented from ccSerializableObject::fromFile. More...

Protected Attributes
ccColor::Rgb	m_rgbColor
	Unique RGB color.

PointCoordinateType	m_width
	Width of the line.

bool	m_mode2D
	Whether polyline should be considered as 2D (true) or 3D (false)

bool	m_foreground
	Whether polyline should draws itself in background (false) or foreground (true)

bool	m_showVertices
	Whether vertices should be displayed or not.

int	m_vertMarkWidth
	Vertex marker width.

bool	m_showArrow
	Whether to show an arrow or not.

PointCoordinateType	m_arrowLength
	Arrow length.

unsigned	m_arrowIndex
	Arrow index.

Protected Attributes inherited from ccShiftedObject
CCVector3d	m_globalShift
	Global shift (typically applied at loading time)

double	m_globalScale
	Global scale (typically applied at loading time)

Protected Attributes inherited from ccHObject
ccHObject *	m_parent
	Parent.

Container	m_children
	Children.

SelectionBehavior	m_selectionBehavior
	Selection behavior.

std::map< ccHObject *, int >	m_dependencies
	Dependencies map. More...

ccGLMatrix	m_glTransHistory
	Cumulative GL transformation. More...

bool	m_isDeleting
	Flag to safely handle dependencies when the object is being deleted.

Protected Attributes inherited from ccObject
QString	m_name
	Object name.

unsigned	m_flags
	Object flags.

QVariantMap	m_metaData
	Associated meta-data.

Protected Attributes inherited from ccDrawableObject
bool	m_visible
	Specifies whether the object is visible or not. More...

bool	m_selected
	Specifies whether the object is selected or not.

bool	m_lockedVisibility
	Specifies whether the visibility can be changed by user or not.

bool	m_colorsDisplayed
	Specifies whether colors should be displayed.

bool	m_normalsDisplayed
	Specifies whether normals should be displayed.

bool	m_sfDisplayed
	Specifies whether scalar field should be displayed.

ccColor::Rgba	m_tempColor
	Temporary (unique) color.

bool	m_colorIsOverridden
	Temporary (unique) color activation state.

ccGLMatrix	m_glTrans
	Current GL transformation. More...

bool	m_glTransEnabled
	Current GL transformation activation state. More...

bool	m_showNameIn3D
	Whether name is displayed in 3D or not.

CCVector3d	m_nameIn3DPos
	Last 2D position of the '3D' name.

bool	m_nameIn3DPosIsValid
	Whether the last 2D position of the '3D' name is valid or not.

ccGenericGLDisplay *	m_currentDisplay
	Currently associated GL display.

ccClipPlaneSet	m_clipPlanes
	Active clipping planes (used for display only)

std::vector< DisplayState::Shared >	m_displayStateStack
	The stack of pushed display states.

Additional Inherited Members
Public Types inherited from ccHObject
enum	DEPENDENCY_FLAGS { DP_NONE = 0 , DP_NOTIFY_OTHER_ON_DELETE = 1 , DP_NOTIFY_OTHER_ON_UPDATE = 2 , DP_DELETE_OTHER = 8 , DP_PARENT_OF_OTHER = 24 }
	Dependency flags. More...

enum	SelectionBehavior { SELECTION_AA_BBOX , SELECTION_FIT_BBOX , SELECTION_IGNORED }
	Behavior when selected.

using	Container = std::vector< ccHObject * >
	Standard instances container (for children, etc.)

using	Shared = QSharedPointer< ccHObject >
	Shared pointer.

using	SharedContainer = std::vector< Shared >
	Shared instances container (for children, etc.)

using	GlobalBoundingBox = CCCoreLib::BoundingBoxTpl< double >
	Global (non-shifted) bounding-box.

Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS = 1 , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID)

Public Attributes inherited from ccHObject
ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive ccGenericGLDisplay *	newDisplay

Detailed Description

Colored polyline.

Extends the CCCoreLib::Polyline class

Constructor & Destructor Documentation

◆ ccPolyline() [1/2]

ccPolyline::ccPolyline	(	GenericIndexedCloudPersist *	associatedCloud,
		unsigned	uniqueID = `ccUniqueIDGenerator::InvalidUniqueID`
	)

explicit

Default constructor.

Parameters

associatedCloud	the associated point cloud (i.e. the vertices)
uniqueID	unique ID (handle with care)

◆ ccPolyline() [2/2]

ccPolyline::ccPolyline ( const ccPolyline & poly )

Copy constructor.

Parameters

poly	polyline to copy/clone

Member Function Documentation

◆ applyGLTransformation()

void ccPolyline::applyGLTransformation ( const ccGLMatrix & trans )

overridevirtual

Applies a GL transformation to the entity.

this = rotMat*(this-rotCenter)+(rotCenter+trans)

Parameters

trans a ccGLMatrix structure

Reimplemented from ccHObject.

◆ createNewPolylinesFromSelection()

bool ccPolyline::createNewPolylinesFromSelection ( std::vector< ccPolyline * > & output )

Creates a polyline mesh with the selected vertices only.

This method is called after a graphical segmentation. It creates one or several new polylines with the segments having their two vertices tagged as "visible" (see ccGenericPointCloud::visibilityArray).

◆ drawBB()

virtual void ccPolyline::drawBB	(	CC_DRAW_CONTEXT &	context,
		const ccColor::Rgb &	col
	)

inlineoverridevirtual

Draws the entity (and its children) bounding-box.

Reimplemented from ccHObject.

◆ drawMeOnly()

void ccPolyline::drawMeOnly ( CC_DRAW_CONTEXT & context )

overrideprotectedvirtual

Draws the entity only (not its children)

Reimplemented from ccHObject.

◆ fromFile_MeOnly()

bool ccPolyline::fromFile_MeOnly	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

overrideprotectedvirtual

Loads own object data.

Called by 'fromFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Parameters

in	input file
dataVersion	file version
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Reimplemented from ccHObject.

◆ getClassID()

CC_CLASS_ENUM ccPolyline::getClassID ( ) const

inlineoverridevirtual

Returns class ID.

Reimplemented from ccHObject.

◆ getColor()

const ccColor::Rgb & ccPolyline::getColor ( ) const

inline

Returns the polyline color.

Returns: a pointer to the polyline RGB color

◆ getGlobalScale()

double ccPolyline::getGlobalScale ( ) const

overridevirtual

Returns the scale applied to original coordinates.

Reimplemented from ccShiftedObject.

◆ getGlobalShift()

const CCVector3d & ccPolyline::getGlobalShift ( ) const

overridevirtual

Returns the shift applied to original coordinates.

See ccGenericPointCloud::setOriginalShift

Reimplemented from ccShiftedObject.

◆ getOwnBB()

ccBBox ccPolyline::getOwnBB ( bool withGLFeatures = false )

overridevirtual

Returns the entity's own bounding-box (with local/shifted coordinates)

Children bounding-boxes are ignored.

Parameters

withGLFeatures whether to take into account display-only elements (if any)

Returns: bounding-box

Reimplemented from ccHObject.

◆ getUniqueIDForDisplay()

unsigned ccPolyline::getUniqueIDForDisplay ( ) const

overridevirtual

Returns object unique ID used for display.

Reimplemented from ccHObject.

◆ getWidth()

PointCoordinateType ccPolyline::getWidth ( ) const

inline

Returns the width of the line.

Returns: the width of the line in pixels

◆ hasColors()

bool ccPolyline::hasColors ( ) const

overridevirtual

Returns whether colors are enabled or not.

Reimplemented from ccDrawableObject.

◆ initWith()

bool ccPolyline::initWith	(	ccPointCloud *&	vertices,
		const ccPolyline &	poly
	)

Initializes the polyline with a given set of vertices and the parameters of another polyline.

Warning: Even the 'closed' state is copied as is!

Parameters

vertices	set of vertices (can be null, in which case the polyline vertices will be cloned)
poly	polyline

Returns: success

◆ isSerializable()

bool ccPolyline::isSerializable ( ) const

inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccHObject.

◆ MetaKeyConstAltitude()

static QString ccPolyline::MetaKeyConstAltitude ( )

inlinestatic

Meta data key: contour plot constant altitude (for contour plots, etc.)

Expected value: altitude as double

◆ MetaKeyPrefixCenter()

static QString ccPolyline::MetaKeyPrefixCenter ( )

inlinestatic

Meta data key (prefix): intersection point between profile and its generatrix.

Expected value: 3D vector

Warning: must be followed by '.x', '.y' or '.z'

◆ MetaKeyPrefixDirection()

static QString ccPolyline::MetaKeyPrefixDirection ( )

inlinestatic

Meta data key (prefix): generatrix orientation at the point of intersection with the profile.

Expected value: 3D vector

Warning: must be followed by '.x', '.y' or '.z'

◆ MetaKeyUpDir()

static QString ccPolyline::MetaKeyUpDir ( )

inlinestatic

Meta data key: vertical direction (for 2D polylines, contour plots, etc.)

Expected value: 0(=X), 1(=Y) or 2(=Z) as int

◆ set2DMode()

void ccPolyline::set2DMode ( bool state )

Defines if the polyline is considered as 2D or 3D.

Parameters

state if true, the polyline is 2D

◆ setColor()

void ccPolyline::setColor ( const ccColor::Rgb & col )

inline

Sets the polyline color.

Parameters

col RGB color

◆ setForeground()

void ccPolyline::setForeground ( bool state )

Defines if the polyline is drawn in background or foreground.

Parameters

state if true, the polyline is drawn in foreground

◆ setGlobalScale()

void ccPolyline::setGlobalScale ( double scale )

overridevirtual

Sets the scale applied to original coordinates (information storage only)

Reimplemented from ccShiftedObject.

◆ setGlobalShift()

void ccPolyline::setGlobalShift ( const CCVector3d & shift )

overridevirtual

Sets shift applied to original coordinates (information storage only)

Such a shift can typically be applied at loading time. Original coordinates are equal to '(P/scale - shift)'

Reimplemented from ccShiftedObject.

◆ setWidth()

void ccPolyline::setWidth ( PointCoordinateType width )

Sets the width of the line.

Parameters

width the desired width

◆ smoothChaikin()

ccPolyline * ccPolyline::smoothChaikin	(	PointCoordinateType	ratio,
		unsigned	iterationCount
	)		const

Smoothes the polyline (Chaikin algorithm)

Parameters

ratio	between 0 and 0.5 (excluded)
iterationCount	of iteration

Returns: smoothed polyline

◆ split()

bool ccPolyline::split	(	PointCoordinateType	maxEdgeLength,
		std::vector< ccPolyline * > &	parts
	)

Splits the polyline into several parts based on a maximum edge length.

Warning: output polylines set (parts) may be empty if all the vertices are too far from each other!

Parameters

[in]	maxEdgeLength	maximum edge length
[out]	parts	output polyline parts

Returns: success

◆ toFile_MeOnly()

bool ccPolyline::toFile_MeOnly ( QFile & out ) const

overrideprotectedvirtual

Save own object data.

Called by 'toFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Reimplemented from ccHObject.

The documentation for this class was generated from the following files:

ccPolyline.h
ccPolyline.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ccPolyline() [1/2]

◆ ccPolyline() [2/2]

Member Function Documentation

◆ applyGLTransformation()

◆ createNewPolylinesFromSelection()

◆ drawBB()

◆ drawMeOnly()

◆ fromFile_MeOnly()

◆ getClassID()

◆ getColor()

◆ getGlobalScale()

◆ getGlobalShift()

◆ getOwnBB()

◆ getUniqueIDForDisplay()

◆ getWidth()

◆ hasColors()

◆ initWith()

◆ isSerializable()

◆ MetaKeyConstAltitude()

◆ MetaKeyPrefixCenter()

◆ MetaKeyPrefixDirection()

◆ MetaKeyUpDir()

◆ set2DMode()

◆ setColor()

◆ setForeground()

◆ setGlobalScale()

◆ setGlobalShift()

◆ setWidth()

◆ smoothChaikin()

◆ split()

◆ toFile_MeOnly()
