Generic interface for (3D) drawable entities. More...

#include <ccDrawableObject.h>

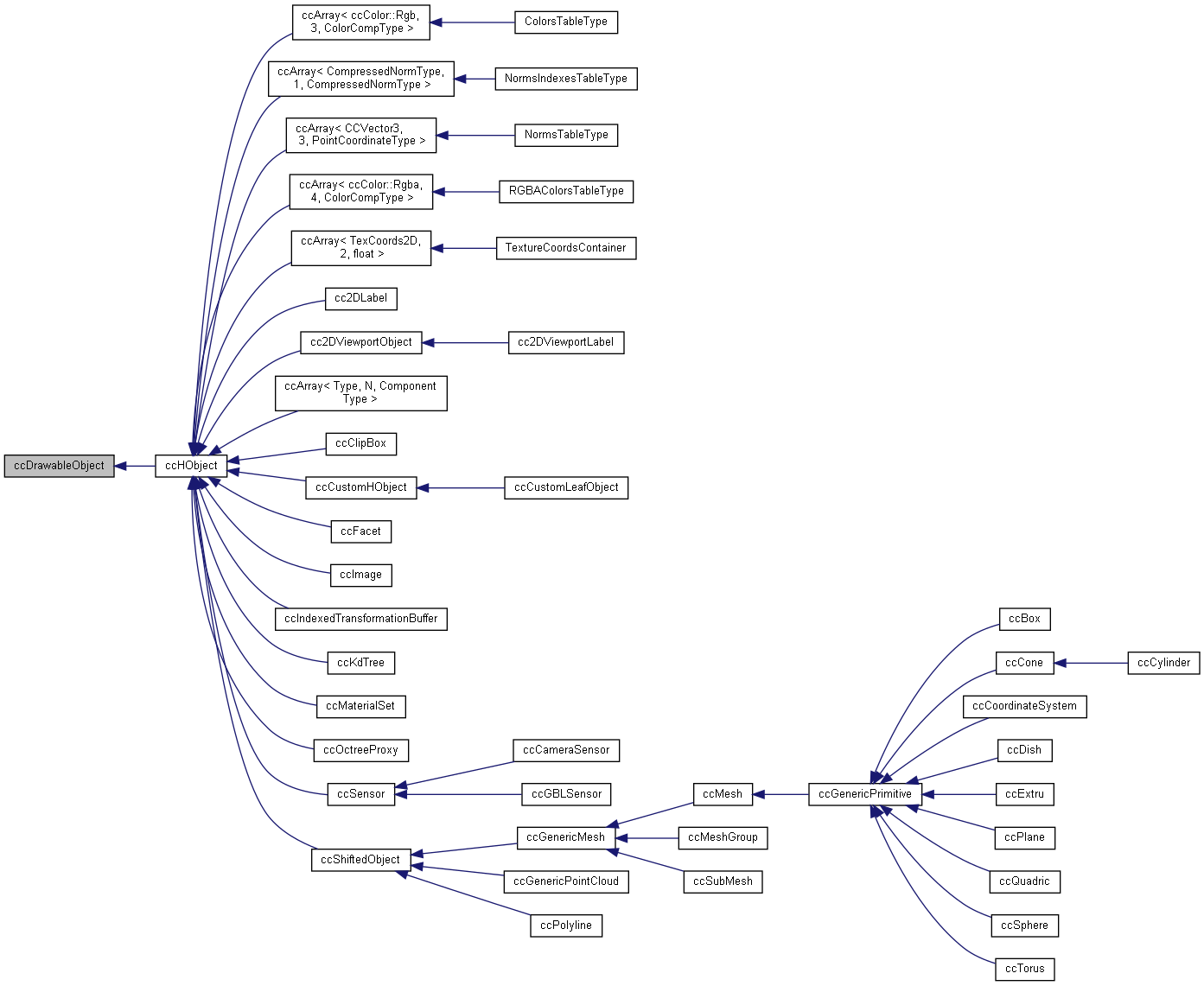

Inheritance diagram for ccDrawableObject:

[legend]

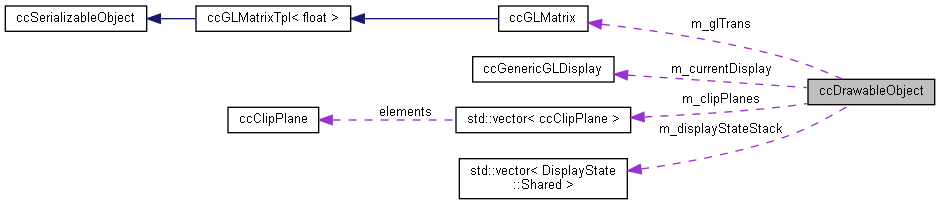

Collaboration diagram for ccDrawableObject:

[legend]

Classes
struct	DisplayState
	Display state. More...

Public Member Functions
	ccDrawableObject ()
	Default constructor.

	ccDrawableObject (const ccDrawableObject &object)
	Copy constructor.

virtual void	draw (CC_DRAW_CONTEXT &context)=0
	Draws entity and its children. More...

virtual bool	isVisible () const
	Returns whether entity is visible or not.

virtual void	setVisible (bool state)
	Sets entity visibility.

virtual void	toggleVisibility ()
	Toggles visibility.

virtual bool	isVisibilityLocked () const
	Returns whether visibility is locked or not.

virtual void	lockVisibility (bool state)
	Locks/unlocks visibility. More...

virtual bool	isSelected () const
	Returns whether entity is selected or not.

virtual void	setSelected (bool state)
	Selects/unselects entity.

virtual void	getDrawingParameters (glDrawParams &params) const
	Returns main OpenGL parameters for this entity. More...

virtual bool	hasColors () const
	Returns whether colors are enabled or not. More...

virtual bool	colorsShown () const
	Returns whether colors are shown or not.

virtual void	showColors (bool state)
	Sets colors visibility.

virtual void	toggleColors ()
	Toggles colors display state.

virtual bool	hasNormals () const
	Returns whether normals are enabled or not. More...

virtual bool	normalsShown () const
	Returns whether normals are shown or not. More...

virtual void	showNormals (bool state)
	Sets normals visibility. More...

virtual void	toggleNormals ()
	Toggles normals display state.

virtual bool	hasDisplayedScalarField () const
	Returns whether an active scalar field is available or not. More...

virtual bool	hasScalarFields () const
	Returns whether one or more scalar fields are instantiated. More...

virtual void	showSF (bool state)
	Sets active scalarfield visibility.

virtual void	toggleSF ()
	Toggles SF display state.

virtual bool	sfShown () const
	Returns whether active scalar field is visible.

virtual void	toggleMaterials ()
	Toggles material display state. More...

virtual void	showNameIn3D (bool state)
	Sets whether name should be displayed in 3D or not.

virtual bool	nameShownIn3D () const
	Returns whether name is displayed in 3D or not.

virtual void	toggleShowName ()
	Toggles name in 3D display state.

virtual bool	isColorOverridden () const
	Returns whether colors are currently overridden by a temporary (unique) color. More...

virtual const ccColor::Rgba &	getTempColor () const
	Returns current temporary (unique) color.

virtual void	setTempColor (const ccColor::Rgba &col, bool autoActivate=true)
	Sets current temporary (unique) More...

virtual void	setTempColor (const ccColor::Rgb &col, bool autoActivate=true)
	Sets current temporary (unique) More...

virtual void	enableTempColor (bool state)
	Set temporary color activation state.

virtual void	removeFromDisplay (const ccGenericGLDisplay *win)
	Unlinks entity from a GL display (only if it belongs to it of course)

virtual void	setDisplay (ccGenericGLDisplay *win)
	Sets associated GL display.

virtual ccGenericGLDisplay *	getDisplay () const
	Returns associated GL display.

virtual void	redrawDisplay ()
	Redraws associated GL display.

virtual void	prepareDisplayForRefresh ()
	Sets associated GL display 'refreshable' before global refresh. More...

virtual void	refreshDisplay (bool only2D=false)
	Refreshes associated GL display. More...

virtual void	setGLTransformation (const ccGLMatrix &trans)
	Associates entity with a GL transformation (rotation + translation) More...

virtual void	enableGLTransformation (bool state)
	Enables/disables associated GL transformation. More...

virtual bool	isGLTransEnabled () const
	Returns whether a GL transformation is enabled or not.

virtual const ccGLMatrix &	getGLTransformation () const
	Returns associated GL transformation. More...

virtual void	resetGLTransformation ()
	Resets associated GL transformation. More...

virtual void	rotateGL (const ccGLMatrix &rotMat)
	Multiplies (left) current GL transformation by a rotation matrix. More...

virtual void	translateGL (const CCVector3 &trans)
	Translates current GL transformation by a rotation matrix. More...

virtual void	removeAllClipPlanes ()
	Removes all clipping planes (if any)

virtual bool	addClipPlanes (const ccClipPlane &plane)
	Registers a new clipping plane. More...

virtual void	toggleClipPlanes (CC_DRAW_CONTEXT &context, bool enable)
	Enables or disables clipping planes (OpenGL) More...

virtual bool	pushDisplayState ()
	Pushes the current display state. More...

virtual void	popDisplayState (bool apply=true)
	Pops the last pushed display state. More...

virtual void	applyDisplayState (const DisplayState &state)
	Applies a display state.

Protected Attributes
bool	m_visible
	Specifies whether the object is visible or not. More...

bool	m_selected
	Specifies whether the object is selected or not.

bool	m_lockedVisibility
	Specifies whether the visibility can be changed by user or not.

bool	m_colorsDisplayed
	Specifies whether colors should be displayed.

bool	m_normalsDisplayed
	Specifies whether normals should be displayed.

bool	m_sfDisplayed
	Specifies whether scalar field should be displayed.

ccColor::Rgba	m_tempColor
	Temporary (unique) color.

bool	m_colorIsOverridden
	Temporary (unique) color activation state.

ccGLMatrix	m_glTrans
	Current GL transformation. More...

bool	m_glTransEnabled
	Current GL transformation activation state. More...

bool	m_showNameIn3D
	Whether name is displayed in 3D or not.

CCVector3d	m_nameIn3DPos
	Last 2D position of the '3D' name.

bool	m_nameIn3DPosIsValid
	Whether the last 2D position of the '3D' name is valid or not.

ccGenericGLDisplay *	m_currentDisplay
	Currently associated GL display.

ccClipPlaneSet	m_clipPlanes
	Active clipping planes (used for display only)

std::vector< DisplayState::Shared >	m_displayStateStack
	The stack of pushed display states.

Detailed Description

Generic interface for (3D) drawable entities.

Member Function Documentation

◆ addClipPlanes()

bool ccDrawableObject::addClipPlanes ( const ccClipPlane & plane )

virtual

Registers a new clipping plane.

Returns: false if the planes couldn't be added (not enough memory)

◆ draw()

virtual void ccDrawableObject::draw ( CC_DRAW_CONTEXT & context )

pure virtual

Draws entity and its children.

Implemented in ccHObject.

◆ enableGLTransformation()

void ccDrawableObject::enableGLTransformation ( bool state )

virtual

Enables/disables associated GL transformation.

See ccDrawableObject::setGLTransformation.

◆ getDrawingParameters()

void ccDrawableObject::getDrawingParameters ( glDrawParams & params ) const

virtual

Returns main OpenGL parameters for this entity.

These parameters are deduced from the visibility states of its different features (points, normals, etc.).

Parameters

params a glDrawParams structure

◆ getGLTransformation()

virtual const ccGLMatrix & ccDrawableObject::getGLTransformation ( ) const

inlinevirtual

Returns associated GL transformation.

See ccDrawableObject::setGLTransformation.

◆ hasColors()

virtual bool ccDrawableObject::hasColors ( ) const

inlinevirtual

Returns whether colors are enabled or not.

Reimplemented in ccMesh, ccPolyline, and ccSubMesh.

◆ hasDisplayedScalarField()

virtual bool ccDrawableObject::hasDisplayedScalarField ( ) const

inlinevirtual

Returns whether an active scalar field is available or not.

Reimplemented in ccMesh, and ccSubMesh.

◆ hasNormals()

virtual bool ccDrawableObject::hasNormals ( ) const

inlinevirtual

Returns whether normals are enabled or not.

Reimplemented in ccMesh, and ccSubMesh.

◆ hasScalarFields()

virtual bool ccDrawableObject::hasScalarFields ( ) const

inlinevirtual

Returns whether one or more scalar fields are instantiated.

Warning: doesn't mean a scalar field is currently displayed (see ccDrawableObject::hasDisplayedScalarField).

Reimplemented in ccMesh, and ccSubMesh.

◆ isColorOverridden()

virtual bool ccDrawableObject::isColorOverridden ( ) const

inlinevirtual

Returns whether colors are currently overridden by a temporary (unique) color.

See ccDrawableObject::setTempColor.

◆ lockVisibility()

virtual void ccDrawableObject::lockVisibility ( bool state )

inlinevirtual

Locks/unlocks visibility.

If visibility is locked, the user won't be able to modify it (via the properties tree for instance).

◆ normalsShown()

virtual bool ccDrawableObject::normalsShown ( ) const

inlinevirtual

Returns whether normals are shown or not.

Reimplemented in ccMesh, and ccSubMesh.

◆ popDisplayState()

void ccDrawableObject::popDisplayState ( bool apply = true )

virtual

Pops the last pushed display state.

Reimplemented in ccHObject.

◆ prepareDisplayForRefresh()

void ccDrawableObject::prepareDisplayForRefresh ( )

virtual

Sets associated GL display 'refreshable' before global refresh.

Only tagged displays will be refreshed when ccGenericGLDisplay::refresh is called (see also MainWindow::RefreshAllGLWindow, MainWindow::refreshAll and ccDrawableObject::refreshDisplay).

◆ pushDisplayState()

bool ccDrawableObject::pushDisplayState ( )

virtual

Pushes the current display state.

Reimplemented in ccHObject.

◆ refreshDisplay()

void ccDrawableObject::refreshDisplay ( bool only2D = false )

virtual

Refreshes associated GL display.

See ccGenericGLDisplay::refresh. The display will only be updated if it has been 'prepared for refresh' (see prepareDisplayForRefresh).

◆ resetGLTransformation()

void ccDrawableObject::resetGLTransformation ( )

virtual

Resets associated GL transformation.

GL transformation is reset to identity. Note: GL transformation is automatically disabled. See ccDrawableObject::setGLTransformation.

◆ rotateGL()

void ccDrawableObject::rotateGL ( const ccGLMatrix & rotMat )

virtual

Multiplies (left) current GL transformation by a rotation matrix.

'GLtrans = M * GLtrans' Note: GL transformation is automatically enabled. See ccDrawableObject::setGLTransformation.

◆ setGLTransformation()

void ccDrawableObject::setGLTransformation ( const ccGLMatrix & trans )

virtual

Associates entity with a GL transformation (rotation + translation)

Warning: FOR DISPLAY PURPOSE ONLY (i.e. should only be temporary) If the associated GL transformation is enabled (see ccDrawableObject::enableGLTransformation), it will be applied before displaying this entity. However it will not be taken into account by any CCCoreLib algorithm (distance computation, etc.) for instance. Note: GL transformation is automatically enabled.

◆ setTempColor() [1/2]

void ccDrawableObject::setTempColor	(	const ccColor::Rgb &	col,
		bool	autoActivate = `true`
	)

virtual

Sets current temporary (unique)

Parameters

col	rgb color
autoActivate	auto activates temporary color

◆ setTempColor() [2/2]

void ccDrawableObject::setTempColor	(	const ccColor::Rgba &	col,
		bool	autoActivate = `true`
	)

virtual

Sets current temporary (unique)

Parameters

col	rgba color
autoActivate	auto activates temporary color

◆ showNormals()

virtual void ccDrawableObject::showNormals ( bool state )

inlinevirtual

Sets normals visibility.

Reimplemented in ccGenericMesh.

◆ toggleClipPlanes()

void ccDrawableObject::toggleClipPlanes	(	CC_DRAW_CONTEXT &	context,
		bool	enable
	)

virtual

Enables or disables clipping planes (OpenGL)

Warning: If enabling the clipping planes, be sure to call this method AFTER the modelview matrix has been set.

◆ toggleMaterials()

virtual void ccDrawableObject::toggleMaterials ( )

inlinevirtual

Toggles material display state.

Reimplemented in ccMesh.

◆ translateGL()

void ccDrawableObject::translateGL ( const CCVector3 & trans )

virtual

Translates current GL transformation by a rotation matrix.

'GLtrans = GLtrans + T' Note: GL transformation is automatically enabled. See ccDrawableObject::setGLTransformation.

Member Data Documentation

◆ m_glTrans

ccGLMatrix ccDrawableObject::m_glTrans

protected

Current GL transformation.

See ccDrawableObject::setGLTransformation.

◆ m_glTransEnabled

bool ccDrawableObject::m_glTransEnabled

protected

Current GL transformation activation state.

See ccDrawableObject::setGLTransformation.

◆ m_visible

bool ccDrawableObject::m_visible

protected

Specifies whether the object is visible or not.

Note: this does not influence the children visibility

The documentation for this class was generated from the following files:

ccDrawableObject.h
ccDrawableObject.cpp

Classes

Public Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ addClipPlanes()

◆ draw()

◆ enableGLTransformation()

◆ getDrawingParameters()

◆ getGLTransformation()

◆ hasColors()

◆ hasDisplayedScalarField()

◆ hasNormals()

◆ hasScalarFields()

◆ isColorOverridden()

◆ lockVisibility()

◆ normalsShown()

◆ popDisplayState()

◆ prepareDisplayForRefresh()

◆ pushDisplayState()

◆ refreshDisplay()

◆ resetGLTransformation()

◆ rotateGL()

◆ setGLTransformation()

◆ setTempColor() [1/2]

◆ setTempColor() [2/2]

◆ showNormals()

◆ toggleClipPlanes()

◆ toggleMaterials()

◆ translateGL()

Member Data Documentation

◆ m_glTrans

◆ m_glTransEnabled

◆ m_visible
