Generic mesh interface. More...

#include <ccGenericMesh.h>

Inheritance diagram for ccGenericMesh:

[legend]

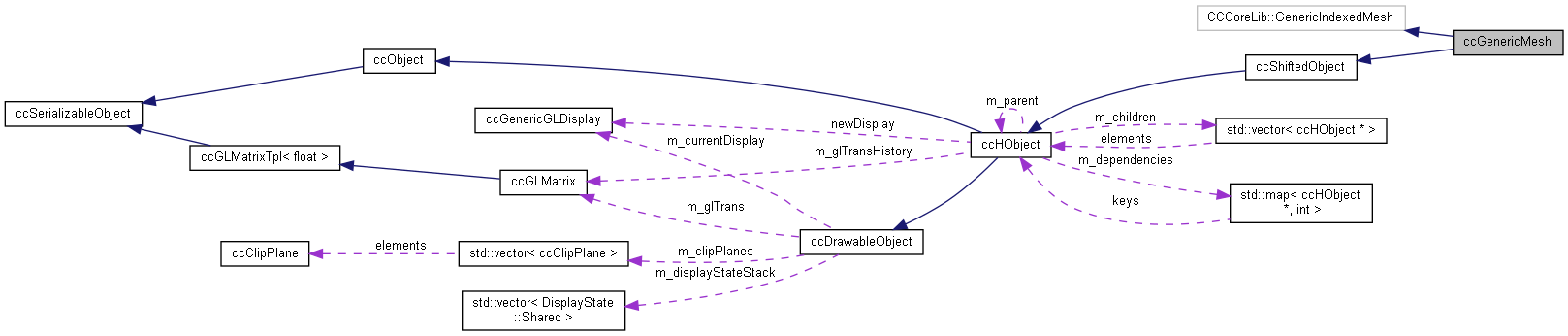

Collaboration diagram for ccGenericMesh:

[legend]

Public Member Functions
	ccGenericMesh (QString name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	~ccGenericMesh () override=default
	Destructor.

void	showNormals (bool state) override
	Sets normals visibility. More...

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

virtual ccGenericPointCloud *	getAssociatedCloud () const =0
	Returns the vertices cloud. More...

virtual void	refreshBB ()=0
	Forces bounding-box update. More...

virtual unsigned	capacity () const =0
	Returns max capacity. More...

virtual bool	hasMaterials () const =0
	Returns whether the mesh has materials/textures. More...

virtual const ccMaterialSet *	getMaterialSet () const =0
	Returns associated material set. More...

virtual int	getTriangleMtlIndex (unsigned triangleIndex) const =0
	Returns a given triangle material indexes. More...

virtual bool	hasTextures () const =0
	Returns whether textures are available for this mesh. More...

virtual TextureCoordsContainer *	getTexCoordinatesTable () const =0
	Returns per-triangle texture coordinates array. More...

virtual void	getTriangleTexCoordinates (unsigned triIndex, TexCoords2D &tx1, TexCoords2D &tx2, TexCoords2D *&tx3) const =0
	Returns per-triangle texture coordinates (pointer to) More...

virtual bool	hasPerTriangleTexCoordIndexes () const =0
	Returns whether this mesh as per-triangle triplets of tex coords indexes. More...

virtual void	getTriangleTexCoordinatesIndexes (unsigned triangleIndex, int &i1, int &i2, int &i3) const =0
	Returns the triplet of tex coords indexes for a given triangle. More...

virtual bool	hasTriNormals () const =0
	Returns whether the mesh has per-triangle normals. More...

virtual void	getTriangleNormalIndexes (unsigned triangleIndex, int &i1, int &i2, int &i3) const =0
	Returns a triplet of normal indexes for a given triangle (if any) More...

virtual bool	getTriangleNormals (unsigned triangleIndex, CCVector3 &Na, CCVector3 &Nb, CCVector3 &Nc) const =0
	Returns a given triangle normal. More...

virtual NormsIndexesTableType *	getTriNormsTable () const =0
	Returns per-triangle normals shared array. More...

virtual void	computeInterpolationWeights (unsigned triIndex, const CCVector3 &P, CCVector3d &weights) const
	Returns the (barycentric) interpolation weights for a given triangle. More...

virtual bool	interpolateNormalsBC (unsigned triIndex, const CCVector3d &w, CCVector3 &N)=0
	Interpolates normal(s) inside a given triangle. More...

virtual bool	interpolateColors (unsigned triIndex, const CCVector3 &P, ccColor::Rgb &color)=0
	Interpolates RGB colors inside a given triangle. More...

virtual bool	interpolateColorsBC (unsigned triIndex, const CCVector3d &w, ccColor::Rgb &color)=0
	Interpolates RGB colors inside a given triangle. More...

virtual bool	interpolateColors (unsigned triIndex, const CCVector3 &P, ccColor::Rgba &color)=0
	Interpolates RGBA colors inside a given triangle. More...

virtual bool	interpolateColorsBC (unsigned triIndex, const CCVector3d &w, ccColor::Rgba &color)=0
	Interpolates RGBA colors inside a given triangle. More...

virtual bool	getColorFromMaterial (unsigned triIndex, const CCVector3 &P, ccColor::Rgba &color, bool interpolateColorIfNoTexture)=0
	Returns RGB color fom a given triangle material/texture. More...

virtual bool	getVertexColorFromMaterial (unsigned triIndex, unsigned char vertIndex, ccColor::Rgba &color, bool returnColorIfNoTexture)=0
	Returns RGB color of a vertex fom a given triangle material/texture. More...

virtual bool	isShownAsWire () const
	Returns whether the mesh is displayed as wired or with plain facets.

virtual void	showWired (bool state)
	Sets whether mesh should be displayed as a wire or with plain facets.

virtual bool	triNormsShown () const
	Returns whether per-triangle normals are shown or not.

virtual void	showTriNorms (bool state)
	Sets whether to show or not per-triangle normals.

virtual bool	materialsShown () const
	Sets whether textures/material should be displayed or not.

virtual void	showMaterials (bool state)
	Sets whether textures should be displayed or not.

virtual bool	stipplingEnabled () const
	Returns whether polygon stippling is enabled or not.

void	enableStippling (bool state)
	Enables polygon stippling.

ccPointCloud *	samplePoints (bool densityBased, double samplingParameter, bool withNormals, bool withRGB, bool withTexture, CCCoreLib::GenericProgressCallback *pDlg=nullptr)
	Samples points on a mesh.

void	importParametersFrom (const ccGenericMesh *mesh)
	Imports the parameters from another mesh. More...

virtual bool	trianglePicking (const CCVector2d &clickPos, const ccGLCameraParameters &camera, int &nearestTriIndex, double &nearestSquareDist, CCVector3d &nearestPoint, CCVector3d *barycentricCoords=nullptr) const
	Brute force triangle picking. More...

virtual bool	trianglePicking (unsigned triIndex, const CCVector2d &clickPos, const ccGLCameraParameters &camera, CCVector3d &point, CCVector3d *barycentricCoords=nullptr) const
	Triangle picking (single triangle)

bool	computePointPosition (unsigned triIndex, const CCVector2d &uv, CCVector3 &P, bool warningIfOutside=true) const
	Computes the point that corresponds to the given uv (barycentric) coordinates.

void	setGlobalShift (const CCVector3d &shift) override
	Sets shift applied to original coordinates (information storage only) More...

void	setGlobalScale (double scale) override
	Sets the scale applied to original coordinates (information storage only) More...

const CCVector3d &	getGlobalShift () const override
	Returns the shift applied to original coordinates. More...

double	getGlobalScale () const override
	Returns the scale applied to original coordinates. More...

bool	normalsAvailable () const override

Public Member Functions inherited from ccShiftedObject
	ccShiftedObject (QString name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccShiftedObject (const ccShiftedObject &s)=default
	Copy constructor. More...

void	copyGlobalShiftAndScale (const ccShiftedObject &s)
	Copies the Global Shift and Scale from another entity. More...

virtual void	setGlobalShift (double x, double y, double z)
	Sets shift applied to original coordinates (information storage only) More...

virtual void	setGlobalShift (const CCVector3d &shift)
	Sets shift applied to original coordinates (information storage only) More...

virtual const CCVector3d &	getGlobalShift () const
	Returns the shift applied to original coordinates. More...

virtual void	setGlobalScale (double scale)
	Sets the scale applied to original coordinates (information storage only) More...

virtual double	getGlobalScale () const
	Returns the scale applied to original coordinates. More...

bool	isShifted () const
	Returns whether the cloud is shifted or not.

template<typename T >
CCVector3d	toGlobal3d (const Vector3Tpl< T > &Plocal) const
	Returns the point back-projected into the original coordinates system.

template<typename T >
CCVector3d	toLocal3d (const Vector3Tpl< T > &Pglobal) const
	Returns the point projected into the local (shifted) coordinates system.

template<typename T >
CCVector3	toLocal3pc (const Vector3Tpl< T > &Pglobal) const
	Returns the point projected into the local (shifted) coordinates system.

bool	getOwnGlobalBB (CCVector3d &minCorner, CCVector3d &maxCorner) override
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

GlobalBoundingBox	getOwnGlobalBB (bool withGLFeatures=false) override
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

Public Member Functions inherited from ccHObject
	ccHObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccHObject (const ccHObject &object)
	Copy constructor.

	~ccHObject () override
	Default destructor.

CC_CLASS_ENUM	getClassID () const override
	Returns class ID. More...

bool	isGroup () const
	Returns whether the instance is a group.

ccHObject *	getParent () const
	Returns parent object. More...

virtual QIcon	getIcon () const
	Returns the icon associated to this entity. More...

void	addDependency (ccHObject *otherObject, int flags, bool additive=true)
	Adds a new dependence (additive or not) More...

int	getDependencyFlagsWith (const ccHObject *otherObject) const
	Returns the dependency flags with a given object. More...

void	removeDependencyWith (ccHObject *otherObject)
	Removes any dependency flags with a given object. More...

void	removeDependencyFlag (ccHObject *otherObject, DEPENDENCY_FLAGS flag)
	Removes a given dependency flag. More...

virtual bool	addChild (ccHObject *child, int dependencyFlags=DP_PARENT_OF_OTHER, int insertIndex=-1)
	Adds a child. More...

unsigned	getChildrenNumber () const
	Returns the number of children. More...

unsigned int	getChildCountRecursive () const
	Returns the total number of children under this object recursively. More...

ccHObject *	getChild (unsigned childPos) const
	Returns the ith child. More...

ccHObject *	find (unsigned uniqueID) const
	Finds an entity in this object hierarchy. More...

unsigned	filterChildren (Container &filteredChildren, bool recursive=false, CC_CLASS_ENUM filter=CC_TYPES::OBJECT, bool strict=false, ccGenericGLDisplay *inDisplay=nullptr) const
	Collects the children corresponding to a certain pattern. More...

void	detachChild (ccHObject *child)
	Detaches a specific child. More...

void	detachAllChildren ()
	Removes a specific child. More...

void	removeChild (ccHObject *child)

void	removeChild (int pos)
	Removes a specific child given its index. More...

void	removeAllChildren ()
	Removes all children.

int	getChildIndex (const ccHObject *aChild) const
	Returns child index.

void	swapChildren (unsigned firstChildIndex, unsigned secondChildIndex)
	Swaps two children.

int	getIndex () const
	Returns index relatively to its parent or -1 if no parent.

void	transferChild (ccHObject *child, ccHObject &newParent)
	Transfer a given child to another parent.

void	transferChildren (ccHObject &newParent, bool forceFatherDependent=false)
	Transfer all children to another parent.

ccHObject *	getFirstChild () const
	Shortcut: returns first child.

ccHObject *	getLastChild () const
	Shortcut: returns last child.

bool	isAncestorOf (const ccHObject *anObject) const
	Returns true if the current object is an ancestor of the specified one.

virtual ccBBox	getOwnBB (bool withGLFeatures=false)
	Returns the entity's own bounding-box (with local/shifted coordinates) More...

virtual ccBBox	getBB_recursive (bool withGLFeatures=false, bool onlyEnabledChildren=true)
	Returns the local bounding-box of this entity and it's children. More...

virtual GlobalBoundingBox	getOwnGlobalBB (bool withGLFeatures=false)
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

virtual bool	getOwnGlobalBB (CCVector3d &minCorner, CCVector3d &maxCorner)
	Returns the entity's own global bounding-box (with global/non-shifted coordinates - if relevant) More...

virtual GlobalBoundingBox	getGlobalBB_recursive (bool withGLFeatures=false, bool onlyEnabledChildren=true)
	Returns the global bounding-box of this entity and it's children. More...

virtual ccBBox	getDisplayBB_recursive (bool relative, const ccGenericGLDisplay *display=nullptr)
	Returns the bounding-box of this entity and it's children WHEN DISPLAYED. More...

virtual ccBBox	getOwnFitBB (ccGLMatrix &trans)
	Returns best-fit bounding-box (if available) More...

virtual void	drawBB (CC_DRAW_CONTEXT &context, const ccColor::Rgb &col)
	Draws the entity (and its children) bounding-box. More...

void	draw (CC_DRAW_CONTEXT &context) override
	Draws entity and its children. More...

bool	getAbsoluteGLTransformation (ccGLMatrix &trans) const
	Returns the absolute transformation (i.e. the actual displayed GL transformation) of an entity. More...

virtual bool	isDisplayed () const
	Returns whether the object is actually displayed (visible) or not.

virtual bool	isDisplayedIn (const ccGenericGLDisplay *display) const
	Returns whether the object is actually displayed (visible) in a given display or not.

virtual bool	isBranchEnabled () const
	Returns whether the object and all its ancestors are enabled.

	ccHObject_recursive_call1 (setSelected, bool, setSelected_recursive) ccHObject_recursive_call1(setDisplay

ccGenericGLDisplay setDisplay_recursive	ccHObject_recursive_call1 (removeFromDisplay, ccGenericGLDisplay *, removeFromDisplay_recursive) ccHObject_recursive_call0(prepareDisplayForRefresh

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive	ccHObject_recursive_call1 (refreshDisplay, bool, refreshDisplay_recursive) ccHObject_recursive_call0(resetGLTransformationHistory

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive	ccHObject_recursive_call0 (toggleActivation, toggleActivation_recursive) ccHObject_recursive_call0(toggleVisibility

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive	ccHObject_recursive_call0 (toggleColors, toggleColors_recursive) ccHObject_recursive_call0(toggleNormals

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive	ccHObject_recursive_call0 (toggleSF, toggleSF_recursive) ccHObject_recursive_call0(toggleShowName

ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive	ccHObject_recursive_call0 (toggleMaterials, toggleMaterials_recursive) inline virtual void transferDisplay(ccGenericGLDisplay *oldDisplay
	Transfers the entity from one display to the other.

void	applyGLTransformation_recursive (const ccGLMatrix *trans=nullptr)
	Applies the active OpenGL transformation to the entity (recursive) More...

virtual void	notifyGeometryUpdate ()
	Notifies all dependent entities that the geometry of this entity has changed.

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	toFile (QFile &out) const override
	Saves data to binary stream. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...

bool	fromFileNoChildren (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Custom version of ccSerializableObject::fromFile. More...

virtual bool	isShareable () const
	Returns whether object is shareable or not. More...

virtual void	setSelectionBehavior (SelectionBehavior mode)
	Sets selection behavior (when displayed) More...

virtual SelectionBehavior	getSelectionBehavior () const
	Returns selection behavior.

virtual unsigned	getUniqueIDForDisplay () const
	Returns object unique ID used for display. More...

virtual const ccGLMatrix &	getGLTransformationHistory () const
	Returns the transformation 'history' matrix. More...

virtual void	setGLTransformationHistory (const ccGLMatrix &mat)
	Sets the transformation 'history' matrix (handle with care!)

virtual void	resetGLTransformationHistory ()
	Resets the transformation 'history' matrix.

bool	pushDisplayState () override
	Pushes the current display state (overridden) More...

void	popDisplayState (bool apply=true) override
	Pops the last pushed display state (overridden) More...

Public Member Functions inherited from ccObject
	ccObject (const QString &name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID)
	Default constructor. More...

	ccObject (const ccObject &object)
	Copy constructor.

virtual CC_CLASS_ENUM	getClassID () const =0
	Returns class ID. More...

virtual QString	getName () const
	Returns object name. More...

virtual void	setName (const QString &name)
	Sets object name.

virtual unsigned	getUniqueID () const
	Returns object unique ID.

virtual void	setUniqueID (unsigned ID)
	Changes unique ID. More...

virtual bool	isEnabled () const
	Returns whether the object is enabled or not. More...

virtual void	setEnabled (bool state)
	Sets the "enabled" property. More...

virtual void	toggleActivation ()
	Toggles the "enabled" property.

virtual bool	isLocked () const
	Returns whether the object is locked or not. More...

virtual void	setLocked (bool state)
	Sets the "enabled" property. More...

bool	isLeaf () const

bool	isCustom () const

bool	isHierarchy () const

bool	isKindOf (CC_CLASS_ENUM type) const

bool	isA (CC_CLASS_ENUM type) const

QVariant	getMetaData (const QString &key) const
	Returns a given associated meta data. More...

bool	removeMetaData (const QString &key)
	Removes a given associated meta-data. More...

void	setMetaData (const QString &key, const QVariant &data)
	Sets a meta-data element. More...

void	setMetaData (const QVariantMap &dataset, bool overwrite=false)
	Sets several meta-data elements at a time. More...

bool	hasMetaData (const QString &key) const
	Returns whether a meta-data element with the given key exists or not. More...

const QVariantMap &	metaData () const
	Returns meta-data map (const only)

Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor.

virtual bool	isSerializable () const
	Returns whether object is serializable of not. More...

virtual bool	toFile (QFile &out) const
	Saves data to binary stream. More...

virtual bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads data from binary stream. More...

Public Member Functions inherited from ccDrawableObject
	ccDrawableObject ()
	Default constructor.

	ccDrawableObject (const ccDrawableObject &object)
	Copy constructor.

virtual void	draw (CC_DRAW_CONTEXT &context)=0
	Draws entity and its children. More...

virtual bool	isVisible () const
	Returns whether entity is visible or not.

virtual void	setVisible (bool state)
	Sets entity visibility.

virtual void	toggleVisibility ()
	Toggles visibility.

virtual bool	isVisibilityLocked () const
	Returns whether visibility is locked or not.

virtual void	lockVisibility (bool state)
	Locks/unlocks visibility. More...

virtual bool	isSelected () const
	Returns whether entity is selected or not.

virtual void	setSelected (bool state)
	Selects/unselects entity.

virtual void	getDrawingParameters (glDrawParams &params) const
	Returns main OpenGL parameters for this entity. More...

virtual bool	hasColors () const
	Returns whether colors are enabled or not. More...

virtual bool	colorsShown () const
	Returns whether colors are shown or not.

virtual void	showColors (bool state)
	Sets colors visibility.

virtual void	toggleColors ()
	Toggles colors display state.

virtual bool	hasNormals () const
	Returns whether normals are enabled or not. More...

virtual bool	normalsShown () const
	Returns whether normals are shown or not. More...

virtual void	showNormals (bool state)
	Sets normals visibility. More...

virtual void	toggleNormals ()
	Toggles normals display state.

virtual bool	hasDisplayedScalarField () const
	Returns whether an active scalar field is available or not. More...

virtual bool	hasScalarFields () const
	Returns whether one or more scalar fields are instantiated. More...

virtual void	showSF (bool state)
	Sets active scalarfield visibility.

virtual void	toggleSF ()
	Toggles SF display state.

virtual bool	sfShown () const
	Returns whether active scalar field is visible.

virtual void	toggleMaterials ()
	Toggles material display state. More...

virtual void	showNameIn3D (bool state)
	Sets whether name should be displayed in 3D or not.

virtual bool	nameShownIn3D () const
	Returns whether name is displayed in 3D or not.

virtual void	toggleShowName ()
	Toggles name in 3D display state.

virtual bool	isColorOverridden () const
	Returns whether colors are currently overridden by a temporary (unique) color. More...

virtual const ccColor::Rgba &	getTempColor () const
	Returns current temporary (unique) color.

virtual void	setTempColor (const ccColor::Rgba &col, bool autoActivate=true)
	Sets current temporary (unique) More...

virtual void	setTempColor (const ccColor::Rgb &col, bool autoActivate=true)
	Sets current temporary (unique) More...

virtual void	enableTempColor (bool state)
	Set temporary color activation state.

virtual void	removeFromDisplay (const ccGenericGLDisplay *win)
	Unlinks entity from a GL display (only if it belongs to it of course)

virtual void	setDisplay (ccGenericGLDisplay *win)
	Sets associated GL display.

virtual ccGenericGLDisplay *	getDisplay () const
	Returns associated GL display.

virtual void	redrawDisplay ()
	Redraws associated GL display.

virtual void	prepareDisplayForRefresh ()
	Sets associated GL display 'refreshable' before global refresh. More...

virtual void	refreshDisplay (bool only2D=false)
	Refreshes associated GL display. More...

virtual void	setGLTransformation (const ccGLMatrix &trans)
	Associates entity with a GL transformation (rotation + translation) More...

virtual void	enableGLTransformation (bool state)
	Enables/disables associated GL transformation. More...

virtual bool	isGLTransEnabled () const
	Returns whether a GL transformation is enabled or not.

virtual const ccGLMatrix &	getGLTransformation () const
	Returns associated GL transformation. More...

virtual void	resetGLTransformation ()
	Resets associated GL transformation. More...

virtual void	rotateGL (const ccGLMatrix &rotMat)
	Multiplies (left) current GL transformation by a rotation matrix. More...

virtual void	translateGL (const CCVector3 &trans)
	Translates current GL transformation by a rotation matrix. More...

virtual void	removeAllClipPlanes ()
	Removes all clipping planes (if any)

virtual bool	addClipPlanes (const ccClipPlane &plane)
	Registers a new clipping plane. More...

virtual void	toggleClipPlanes (CC_DRAW_CONTEXT &context, bool enable)
	Enables or disables clipping planes (OpenGL) More...

virtual bool	pushDisplayState ()
	Pushes the current display state. More...

virtual void	popDisplayState (bool apply=true)
	Pops the last pushed display state. More...

virtual void	applyDisplayState (const DisplayState &state)
	Applies a display state.

Static Public Member Functions
static bool	IsCloudVerticesOfMesh (ccGenericPointCloud cloud, ccGenericMesh *mesh=nullptr)
	Helper to determine if the input cloud acts as vertices of a mesh.

Static Public Member Functions inherited from ccHObject
static ccHObject *	New (CC_CLASS_ENUM objectType, const char *name=nullptr)
	Static factory. More...

static ccHObject *	New (const QString &pluginId, const QString &classId, const char *name=nullptr)
	Static factory (version to be used by external plugin factories) More...

Static Public Member Functions inherited from ccObject
static unsigned	GetCurrentDBVersion ()
	Returns current database version.

static void	SetUniqueIDGenerator (ccUniqueIDGenerator::Shared generator)
	Sets the unique ID generator.

static ccUniqueIDGenerator::Shared	GetUniqueIDGenerator ()
	Returns the unique ID generator.

static unsigned	GetNextUniqueID ()
	Returns a new unassigned unique ID. More...

static unsigned	GetLastUniqueID ()
	Returns last assigned unique ID. More...

static CC_CLASS_ENUM	ReadClassIDFromFile (QFile &in, short dataVersion)
	Helper: reads out class ID from a binary stream. More...

Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...

static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...

static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...

static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Protected Member Functions
bool	toFile_MeOnly (QFile &out) const override
	Save own object data. More...

bool	fromFile_MeOnly (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads own object data. More...

virtual bool	trianglePicking (unsigned triIndex, const CCVector2d &clickPos, const ccGLMatrix &trans, bool noGLTrans, const ccGenericPointCloud &vertices, const ccGLCameraParameters &camera, CCVector3d &point, CCVector3d barycentricCoords=nullptr, QPainter painter=nullptr) const
	Triangle picking (single triangle)

void	drawMeOnly (CC_DRAW_CONTEXT &context) override
	Draws the entity only (not its children) More...

void	handleColorRamp (CC_DRAW_CONTEXT &context)
	Handles the color ramp display.

Protected Member Functions inherited from ccShiftedObject
bool	saveShiftInfoToFile (QFile &out) const
	Serialization helper (output)

bool	loadShiftInfoFromFile (QFile &in)
	Serialization helper (input)

Protected Member Functions inherited from ccHObject
virtual void	setParent (ccHObject *anObject)
	Sets parent object.

virtual void	drawMeOnly (CC_DRAW_CONTEXT &context)
	Draws the entity only (not its children) More...

virtual void	applyGLTransformation (const ccGLMatrix &trans)
	Applies a GL transformation to the entity. More...

virtual bool	toFile_MeOnly (QFile &out) const
	Save own object data. More...

virtual bool	fromFile_MeOnly (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads own object data. More...

virtual void	drawNameIn3D (CC_DRAW_CONTEXT &context)
	Draws the entity name in 3D. More...

virtual void	onDeletionOf (const ccHObject *obj)
	This method is called when another object is deleted. More...

virtual void	onUpdateOf (ccHObject *obj)
	This method is called when another object (geometry) is updated. More...

Protected Member Functions inherited from ccObject
virtual bool	getFlagState (CC_OBJECT_FLAG flag) const
	Returns flag state.

virtual void	setFlagState (CC_OBJECT_FLAG flag, bool state)
	Sets flag state. More...

bool	toFile (QFile &out) const override
	Saves data to binary stream. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Reimplemented from ccSerializableObject::fromFile. More...

Static Protected Member Functions
static CCVector3 *	GetVertexBuffer ()

static CCVector3 *	GetNormalsBuffer ()

static ColorCompType *	GetColorsBuffer ()

static unsigned *	GetWireVertexIndexes ()
	Returns a pre-initialized array of vertex indexes for wired display. More...

static void	EnableGLStippleMask (const QOpenGLContext *context, bool state)
	Enables (OpenGL) stipple mask.

Protected Attributes
bool	m_triNormsShown
	Per-triangle normals display flag.

bool	m_materialsShown
	Texture/material display flag.

bool	m_showWired
	Wireframe display mode.

bool	m_stippling
	Polygon stippling state.

Protected Attributes inherited from ccShiftedObject
CCVector3d	m_globalShift
	Global shift (typically applied at loading time)

double	m_globalScale
	Global scale (typically applied at loading time)

Protected Attributes inherited from ccHObject
ccHObject *	m_parent
	Parent.

Container	m_children
	Children.

SelectionBehavior	m_selectionBehavior
	Selection behavior.

std::map< ccHObject *, int >	m_dependencies
	Dependencies map. More...

ccGLMatrix	m_glTransHistory
	Cumulative GL transformation. More...

bool	m_isDeleting
	Flag to safely handle dependencies when the object is being deleted.

Protected Attributes inherited from ccObject
QString	m_name
	Object name.

unsigned	m_flags
	Object flags.

QVariantMap	m_metaData
	Associated meta-data.

Protected Attributes inherited from ccDrawableObject
bool	m_visible
	Specifies whether the object is visible or not. More...

bool	m_selected
	Specifies whether the object is selected or not.

bool	m_lockedVisibility
	Specifies whether the visibility can be changed by user or not.

bool	m_colorsDisplayed
	Specifies whether colors should be displayed.

bool	m_normalsDisplayed
	Specifies whether normals should be displayed.

bool	m_sfDisplayed
	Specifies whether scalar field should be displayed.

ccColor::Rgba	m_tempColor
	Temporary (unique) color.

bool	m_colorIsOverridden
	Temporary (unique) color activation state.

ccGLMatrix	m_glTrans
	Current GL transformation. More...

bool	m_glTransEnabled
	Current GL transformation activation state. More...

bool	m_showNameIn3D
	Whether name is displayed in 3D or not.

CCVector3d	m_nameIn3DPos
	Last 2D position of the '3D' name.

bool	m_nameIn3DPosIsValid
	Whether the last 2D position of the '3D' name is valid or not.

ccGenericGLDisplay *	m_currentDisplay
	Currently associated GL display.

ccClipPlaneSet	m_clipPlanes
	Active clipping planes (used for display only)

std::vector< DisplayState::Shared >	m_displayStateStack
	The stack of pushed display states.

Additional Inherited Members
Public Types inherited from ccHObject
enum	DEPENDENCY_FLAGS { DP_NONE = 0 , DP_NOTIFY_OTHER_ON_DELETE = 1 , DP_NOTIFY_OTHER_ON_UPDATE = 2 , DP_DELETE_OTHER = 8 , DP_PARENT_OF_OTHER = 24 }
	Dependency flags. More...

enum	SelectionBehavior { SELECTION_AA_BBOX , SELECTION_FIT_BBOX , SELECTION_IGNORED }
	Behavior when selected.

using	Container = std::vector< ccHObject * >
	Standard instances container (for children, etc.)

using	Shared = QSharedPointer< ccHObject >
	Shared pointer.

using	SharedContainer = std::vector< Shared >
	Shared instances container (for children, etc.)

using	GlobalBoundingBox = CCCoreLib::BoundingBoxTpl< double >
	Global (non-shifted) bounding-box.

Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS = 1 , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID)

Public Attributes inherited from ccHObject
ccGenericGLDisplay setDisplay_recursive prepareDisplayForRefresh_recursive resetGLTransformationHistory_recursive toggleVisibility_recursive toggleNormals_recursive toggleShowName_recursive ccGenericGLDisplay *	newDisplay

Detailed Description

Generic mesh interface.

Constructor & Destructor Documentation

◆ ccGenericMesh()

ccGenericMesh::ccGenericMesh	(	QString	name = `QString()`,
		unsigned	uniqueID = `ccUniqueIDGenerator::InvalidUniqueID`
	)

Default constructor.

Parameters

name	object name
uniqueID	unique ID (handle with care)

Member Function Documentation

◆ capacity()

virtual unsigned ccGenericMesh::capacity ( ) const

pure virtual

Returns max capacity.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ computeInterpolationWeights()

void ccGenericMesh::computeInterpolationWeights	(	unsigned	triIndex,
		const CCVector3 &	P,
		CCVector3d &	weights
	)		const

virtual

Returns the (barycentric) interpolation weights for a given triangle.

Reimplemented in ccMesh.

◆ drawMeOnly()

void ccGenericMesh::drawMeOnly ( CC_DRAW_CONTEXT & context )

overrideprotectedvirtual

Draws the entity only (not its children)

Reimplemented from ccHObject.

Reimplemented in ccMesh, ccMeshGroup, and ccPlane.

◆ fromFile_MeOnly()

bool ccGenericMesh::fromFile_MeOnly	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

overrideprotectedvirtual

Loads own object data.

Called by 'fromFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Parameters

in	input file
dataVersion	file version
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Reimplemented from ccHObject.

Reimplemented in ccGenericPrimitive, ccMesh, ccMeshGroup, ccPlane, ccQuadric, ccSphere, ccSubMesh, and ccTorus.

◆ getAssociatedCloud()

virtual ccGenericPointCloud * ccGenericMesh::getAssociatedCloud ( ) const

pure virtual

Returns the vertices cloud.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getColorFromMaterial()

virtual bool ccGenericMesh::getColorFromMaterial	(	unsigned	triIndex,
		const CCVector3 &	P,
		ccColor::Rgba &	color,
		bool	interpolateColorIfNoTexture
	)

pure virtual

Returns RGB color fom a given triangle material/texture.

Parameters

	triIndex	triangle index
	P	point where to grab color (should be inside the triangle!)
[out]	color	texel color
	interpolateColorIfNoTexture	whether to return the color interpolated from the RGB field if no texture/material is associated to the given triangles

Returns: success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getGlobalScale()

double ccGenericMesh::getGlobalScale ( ) const

overridevirtual

Returns the scale applied to original coordinates.

Reimplemented from ccShiftedObject.

◆ getGlobalShift()

const CCVector3d & ccGenericMesh::getGlobalShift ( ) const

overridevirtual

Returns the shift applied to original coordinates.

See ccGenericPointCloud::setOriginalShift

Reimplemented from ccShiftedObject.

◆ getMaterialSet()

virtual const ccMaterialSet * ccGenericMesh::getMaterialSet ( ) const

pure virtual

Returns associated material set.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTexCoordinatesTable()

virtual TextureCoordsContainer * ccGenericMesh::getTexCoordinatesTable ( ) const

pure virtual

Returns per-triangle texture coordinates array.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleMtlIndex()

virtual int ccGenericMesh::getTriangleMtlIndex ( unsigned triangleIndex ) const

pure virtual

Returns a given triangle material indexes.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleNormalIndexes()

virtual void ccGenericMesh::getTriangleNormalIndexes	(	unsigned	triangleIndex,
		int &	i1,
		int &	i2,
		int &	i3
	)		const

pure virtual

Returns a triplet of normal indexes for a given triangle (if any)

Parameters

[in]	triangleIndex	triangle index
[out]	i1	first vertex normal index (or -1 if none)
[out]	i2	second vertex normal index (or -1 if none)
[out]	i3	third vertex normal index (or -1 if none)

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleNormals()

virtual bool ccGenericMesh::getTriangleNormals	(	unsigned	triangleIndex,
		CCVector3 &	Na,
		CCVector3 &	Nb,
		CCVector3 &	Nc
	)		const

pure virtual

Returns a given triangle normal.

Mesh must have triangle normals associated (see hasTriNormals)

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleTexCoordinates()

virtual void ccGenericMesh::getTriangleTexCoordinates	(	unsigned	triIndex,
		TexCoords2D *&	tx1,
		TexCoords2D *&	tx2,
		TexCoords2D *&	tx3
	)		const

pure virtual

Returns per-triangle texture coordinates (pointer to)

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriangleTexCoordinatesIndexes()

virtual void ccGenericMesh::getTriangleTexCoordinatesIndexes	(	unsigned	triangleIndex,
		int &	i1,
		int &	i2,
		int &	i3
	)		const

pure virtual

Returns the triplet of tex coords indexes for a given triangle.

Parameters

triangleIndex	triangle index
i1	first vertex tex coords index
i2	second vertex tex coords index
i3	third vertex tex coords index

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getTriNormsTable()

virtual NormsIndexesTableType * ccGenericMesh::getTriNormsTable ( ) const

pure virtual

Returns per-triangle normals shared array.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ getVertexColorFromMaterial()

virtual bool ccGenericMesh::getVertexColorFromMaterial	(	unsigned	triIndex,
		unsigned char	vertIndex,
		ccColor::Rgba &	color,
		bool	returnColorIfNoTexture
	)

pure virtual

Returns RGB color of a vertex fom a given triangle material/texture.

Parameters

	triIndex	triangle index
	vertIndex	vertex index inside triangle (i.e. 0, 1 or 2!)
[out]	color	texel color
	returnColorIfNoTexture	whether to return the color from the vertex RGB field if no texture/material is associated to the given triangle

Returns: success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ GetWireVertexIndexes()

unsigned * ccGenericMesh::GetWireVertexIndexes ( )

staticprotected

Returns a pre-initialized array of vertex indexes for wired display.

Array size is MAX_NUMBER_OF_ELEMENTS_PER_CHUNK*6 by default

◆ hasMaterials()

virtual bool ccGenericMesh::hasMaterials ( ) const

pure virtual

Returns whether the mesh has materials/textures.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ hasPerTriangleTexCoordIndexes()

virtual bool ccGenericMesh::hasPerTriangleTexCoordIndexes ( ) const

pure virtual

Returns whether this mesh as per-triangle triplets of tex coords indexes.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ hasTextures()

virtual bool ccGenericMesh::hasTextures ( ) const

pure virtual

Returns whether textures are available for this mesh.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ hasTriNormals()

virtual bool ccGenericMesh::hasTriNormals ( ) const

pure virtual

Returns whether the mesh has per-triangle normals.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ importParametersFrom()

void ccGenericMesh::importParametersFrom ( const ccGenericMesh * mesh )

Imports the parameters from another mesh.

Only the specific parameters are imported.

◆ interpolateColors() [1/2]

virtual bool ccGenericMesh::interpolateColors	(	unsigned	triIndex,
		const CCVector3 &	P,
		ccColor::Rgb &	color
	)

pure virtual

Interpolates RGB colors inside a given triangle.

Parameters

	triIndex	triangle index
	P	point where to interpolate (should be inside the triangle!)
[out]	color	interpolated color

Returns: success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ interpolateColors() [2/2]

virtual bool ccGenericMesh::interpolateColors	(	unsigned	triIndex,
		const CCVector3 &	P,
		ccColor::Rgba &	color
	)

pure virtual

Interpolates RGBA colors inside a given triangle.

Parameters

	triIndex	triangle index
	P	point where to interpolate (should be inside the triangle!)
[out]	color	interpolated color

Returns: success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ interpolateColorsBC() [1/2]

virtual bool ccGenericMesh::interpolateColorsBC	(	unsigned	triIndex,
		const CCVector3d &	w,
		ccColor::Rgb &	color
	)

pure virtual

Interpolates RGB colors inside a given triangle.

Parameters

	triIndex	triangle index
	w	barycentric coordinates
[out]	color	interpolated color

Returns: success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ interpolateColorsBC() [2/2]

virtual bool ccGenericMesh::interpolateColorsBC	(	unsigned	triIndex,
		const CCVector3d &	w,
		ccColor::Rgba &	color
	)

pure virtual

Interpolates RGBA colors inside a given triangle.

Parameters

	triIndex	triangle index
	w	barycentric coordinates
[out]	color	interpolated color

Returns: success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ interpolateNormalsBC()

virtual bool ccGenericMesh::interpolateNormalsBC	(	unsigned	triIndex,
		const CCVector3d &	w,
		CCVector3 &	N
	)

pure virtual

Interpolates normal(s) inside a given triangle.

Parameters

	triIndex	triangle index
	w	barycentric coordinates
[out]	N	interpolated normal

Returns: success

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ isSerializable()

bool ccGenericMesh::isSerializable ( ) const

inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

Reimplemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ refreshBB()

virtual void ccGenericMesh::refreshBB ( )

pure virtual

Forces bounding-box update.

Implemented in ccMesh, ccMeshGroup, and ccSubMesh.

◆ setGlobalScale()

void ccGenericMesh::setGlobalScale ( double scale )

overridevirtual

Sets the scale applied to original coordinates (information storage only)

Reimplemented from ccShiftedObject.

Reimplemented in ccMeshGroup, and ccSubMesh.

◆ setGlobalShift()

void ccGenericMesh::setGlobalShift ( const CCVector3d & shift )

overridevirtual

Sets shift applied to original coordinates (information storage only)

Such a shift can typically be applied at loading time. Original coordinates are equal to '(P/scale - shift)'

Reimplemented from ccShiftedObject.

Reimplemented in ccMeshGroup, and ccSubMesh.

◆ showNormals()

void ccGenericMesh::showNormals ( bool state )

overridevirtual

Sets normals visibility.

Reimplemented from ccDrawableObject.

◆ toFile_MeOnly()

bool ccGenericMesh::toFile_MeOnly ( QFile & out ) const

overrideprotectedvirtual

Save own object data.

Called by 'toFile' (recursive scheme) To be overloaded (but still called;) by subclass.

Reimplemented from ccHObject.

Reimplemented in ccGenericPrimitive, ccMesh, ccMeshGroup, ccPlane, ccQuadric, ccSphere, ccSubMesh, and ccTorus.

◆ trianglePicking()

bool ccGenericMesh::trianglePicking	(	const CCVector2d &	clickPos,
		const ccGLCameraParameters &	camera,
		int &	nearestTriIndex,
		double &	nearestSquareDist,
		CCVector3d &	nearestPoint,
		CCVector3d *	barycentricCoords = `nullptr`
	)		const

virtual

Brute force triangle picking.

Reimplemented in ccMeshGroup.

The documentation for this class was generated from the following files:

ccGenericMesh.h
ccGenericMesh.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ccGenericMesh()

Member Function Documentation

◆ capacity()

◆ computeInterpolationWeights()

◆ drawMeOnly()

◆ fromFile_MeOnly()

◆ getAssociatedCloud()

◆ getColorFromMaterial()

◆ getGlobalScale()

◆ getGlobalShift()

◆ getMaterialSet()

◆ getTexCoordinatesTable()

◆ getTriangleMtlIndex()

◆ getTriangleNormalIndexes()

◆ getTriangleNormals()

◆ getTriangleTexCoordinates()

◆ getTriangleTexCoordinatesIndexes()

◆ getTriNormsTable()

◆ getVertexColorFromMaterial()

◆ GetWireVertexIndexes()

◆ hasMaterials()

◆ hasPerTriangleTexCoordIndexes()

◆ hasTextures()

◆ hasTriNormals()

◆ importParametersFrom()

◆ interpolateColors() [1/2]

◆ interpolateColors() [2/2]

◆ interpolateColorsBC() [1/2]

◆ interpolateColorsBC() [2/2]

◆ interpolateNormalsBC()

◆ isSerializable()

◆ refreshBB()

◆ setGlobalScale()

◆ setGlobalShift()

◆ showNormals()

◆ toFile_MeOnly()

◆ trianglePicking()
